89663-E0750B 89663E0750B ECU Controller for J08 Engine Parts

Informasi Dasar
Tempat asal: Cina
Nama merek: Jiajue
Nomor model: J08
Kuantitas min Order: 1 buah
Harga: $700/pc
Kemasan rincian: 89663-E0750B 89663E0750B ECU Controller untuk Suku Cadang Mesin J08 Dikemas dalam kemasan standar ek
Waktu pengiriman: 1-5 hari kerja
Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union,
Menyediakan kemampuan: 100 buah/bulan
Informasi Detail
Nama Produk: ECU Bahan: baja
Tempat asal: Guangdong, Tiongkok MOQ: 1
OEM: Mendukung
Menyoroti:

J08 Engine ECU Controller

,

ECU Controller for J08 Engine

,

89663-E0750B Engine Controller


Deskripsi Produk

89663-E0750B ECU Controller for J08 Engine Parts
High-quality ECU controller designed specifically for J08 engine applications, ensuring optimal performance and reliability.
Product Specifications
Product Name Controller ECU
Part Number 89663-E0750B
Brand Name JIAJUE
Model J08
Condition New
Availability Rich Stock
Approximate Weight 1KG
Size (per unit) 30cm x 20cm x 8cm
Delivery Time Usually delivered within 1-3 days after payment
Product Images

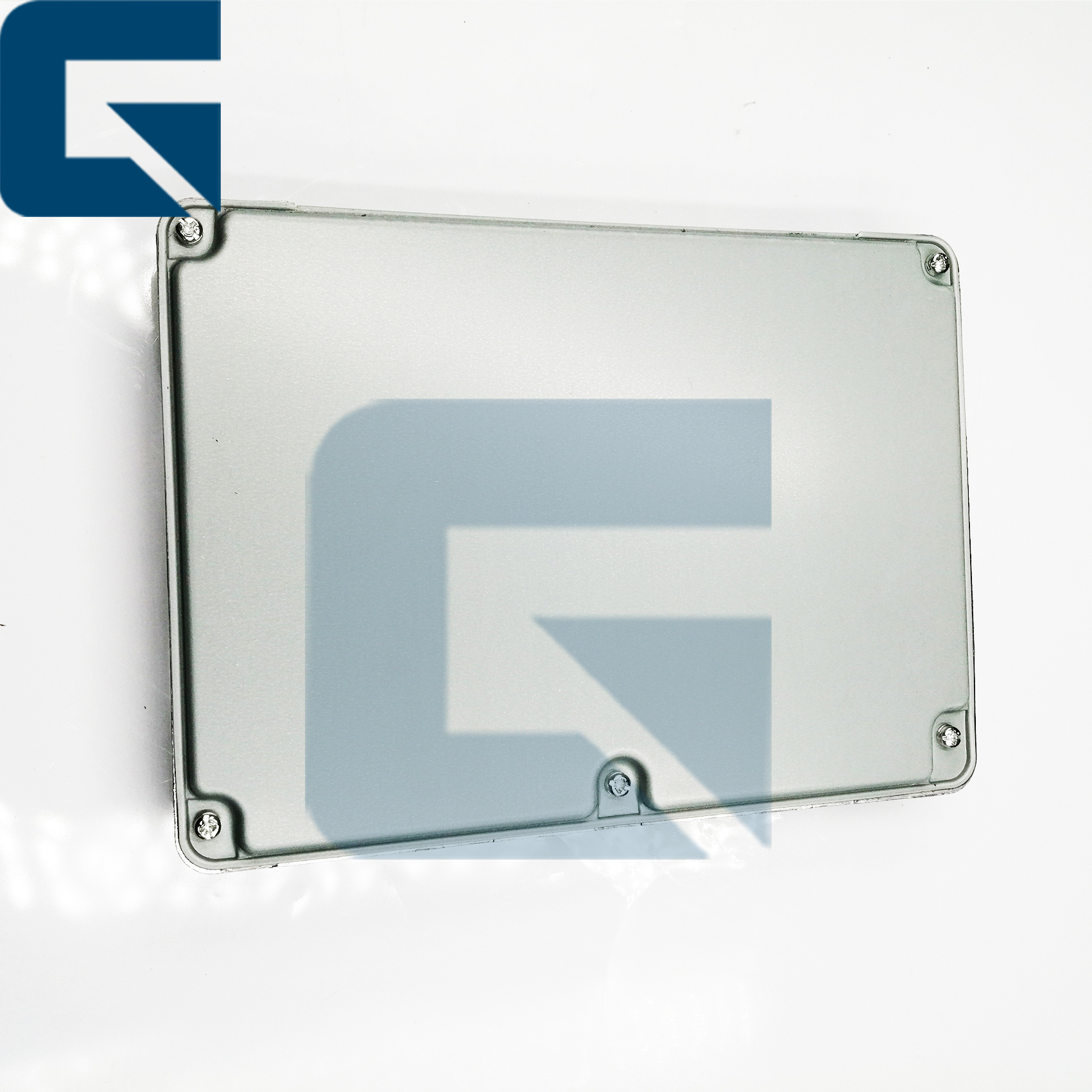

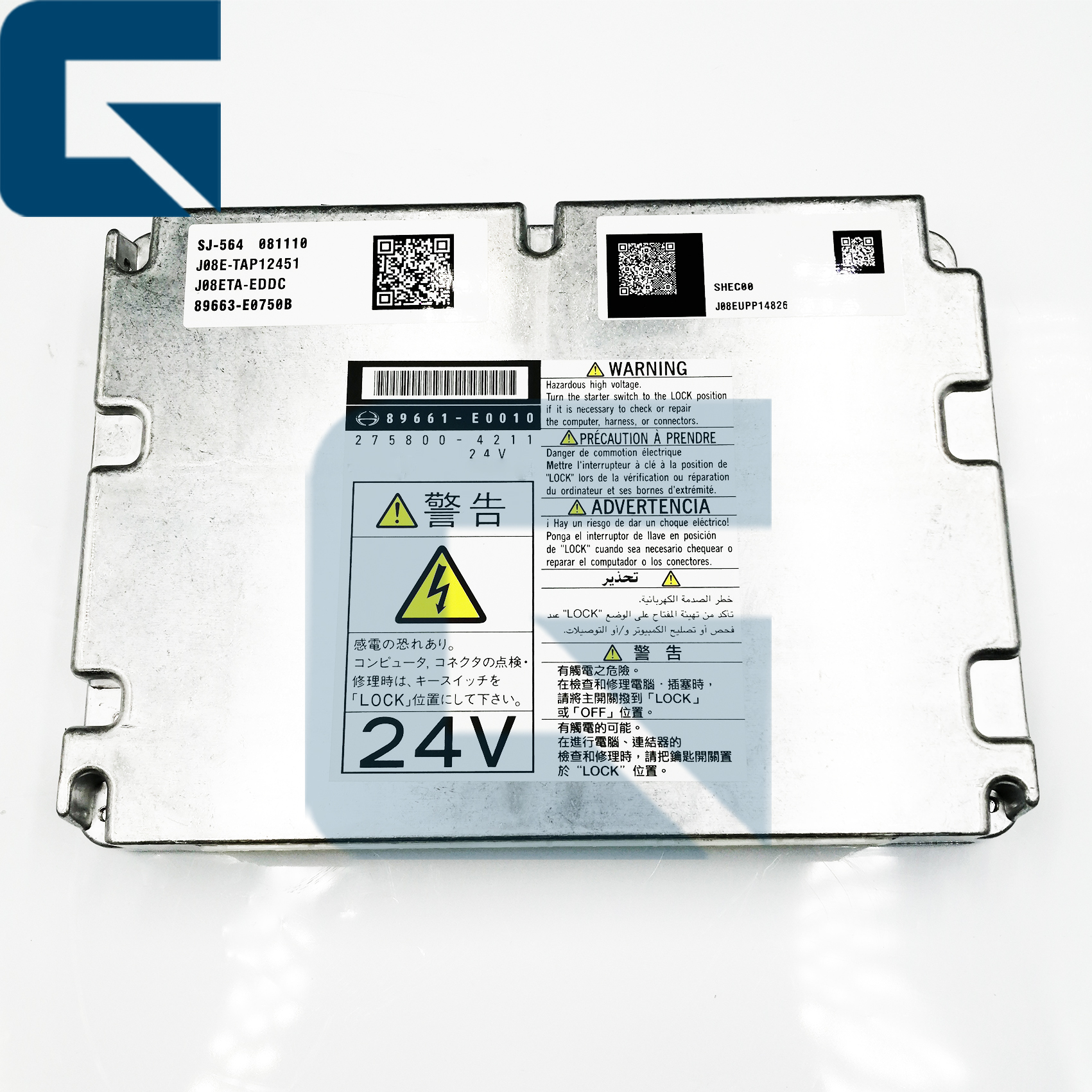

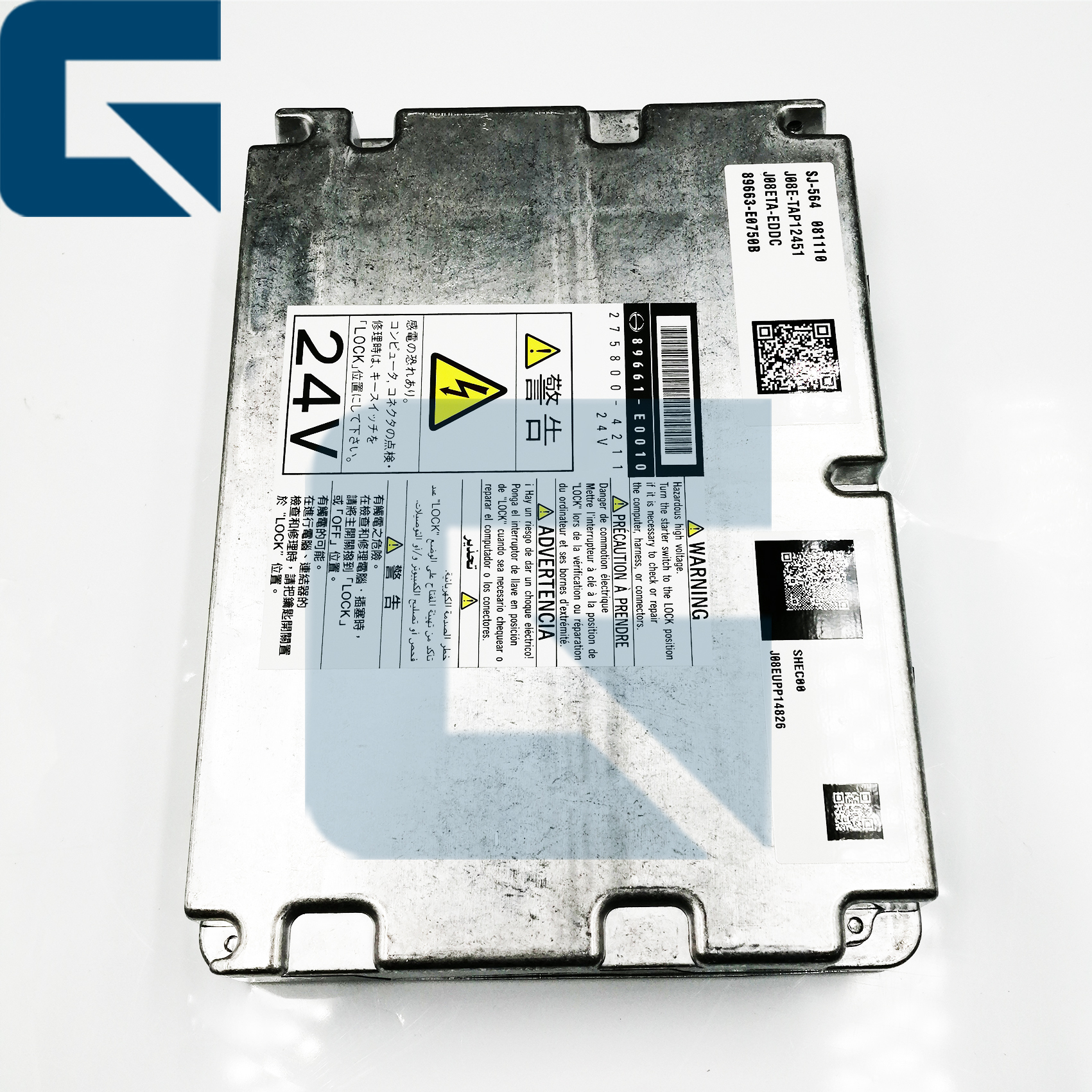

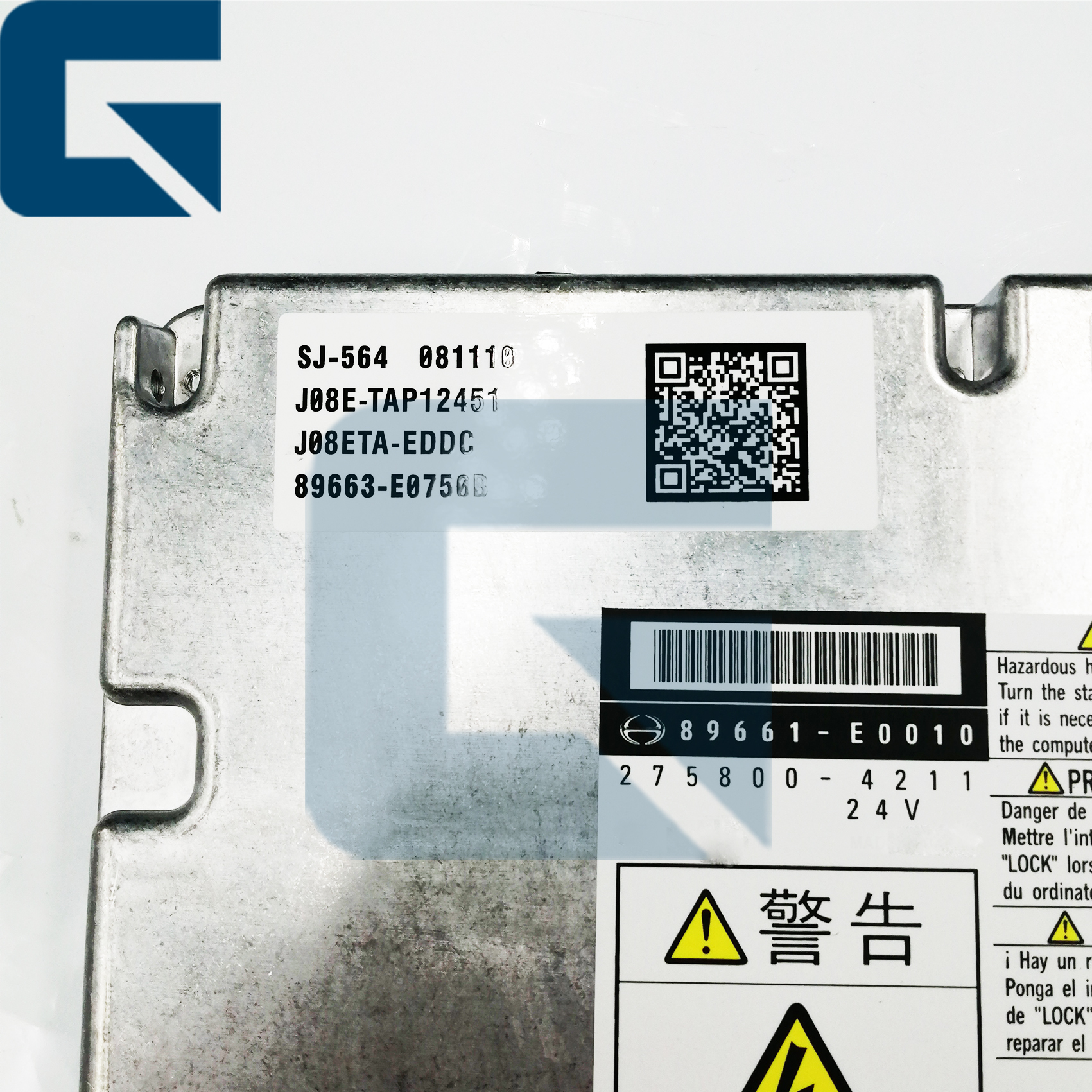

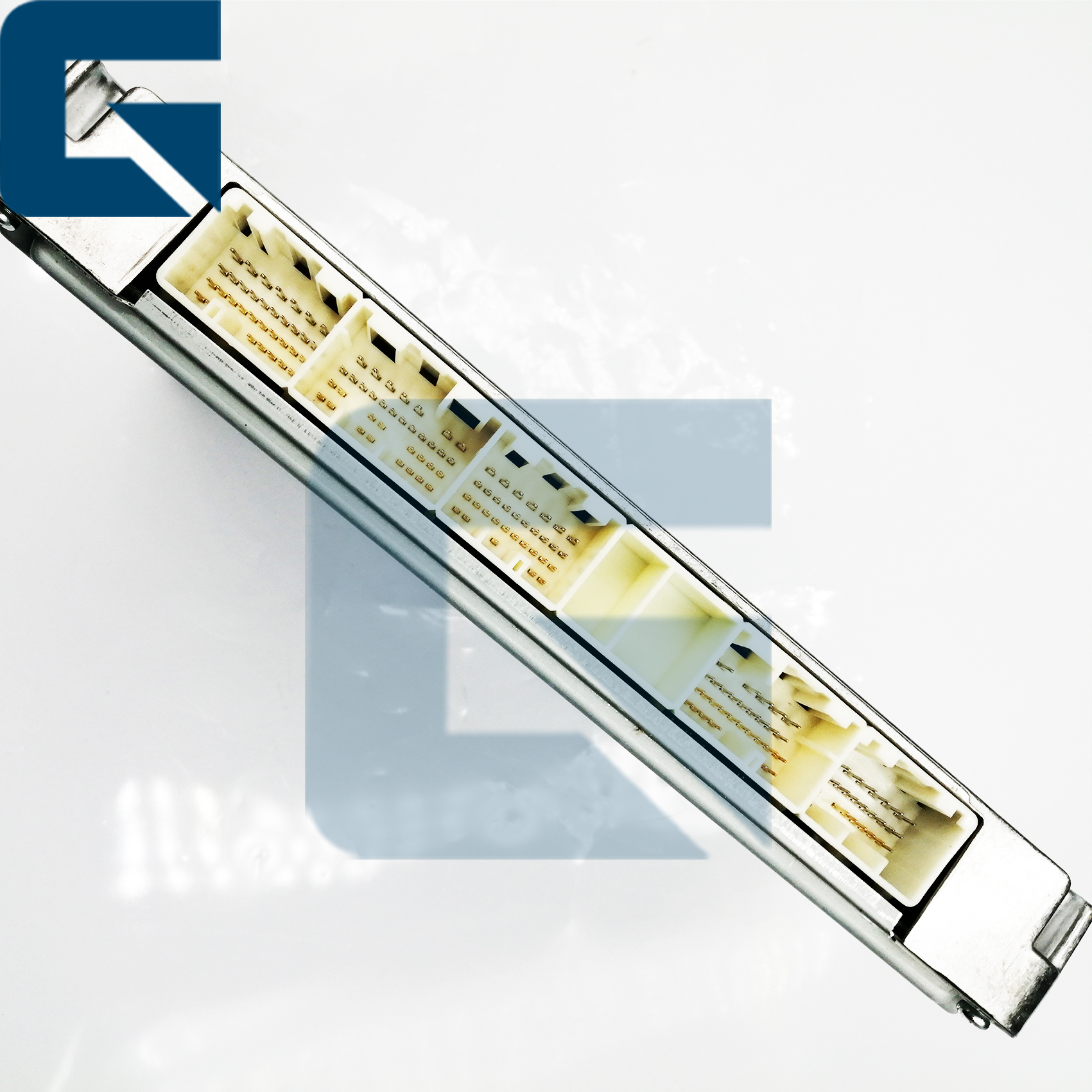

89663-E0750B 89663E0750B ECU Controller for J08 Engine Parts 0 89663-E0750B 89663E0750B ECU Controller for J08 Engine Parts 1 89663-E0750B 89663E0750B ECU Controller for J08 Engine Parts 2 89663-E0750B 89663E0750B ECU Controller for J08 Engine Parts 3
Frequently Asked Questions
How long does it take to install the ECM on machine?
  • Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
  • Programming & Testing: 30-60 minutes.
If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.
How to determine if the ECM is faulty and needs replacement?
  • The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
  • Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
  • Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
  • Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.
What's your payment method?
Our payment methods include T/T, L/C, PayPal, etc.
Do you have stock?
Rich stock available.
How can I know my order is already shipping?
When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.
Step-by-Step Testing Guide
HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
  2. Inspect: Check the ECU for physical damage or loose connections.
  3. Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
  4. Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
  5. Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
  6. Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
  7. Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
  8. Document: Keep a record of all tests, codes, and results for future reference.
Quick Checklist for Buyers
Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
