Name: 362-3189 3623189 Controller for CS-54B Compactor
Brand: GUANGZHOU JIAJUE TRADING CO.,LTD
SKU: CS-54B
Price: 800 USD
Availability: InStock

اطلاعات تکمیلی

نام محصول:	362-3189 3623189 کنترلر برای فشرده ساز CS-54B	مواد:	فولاد
محل منبع:	گوانگدونگ، چین	MOQ:	1
OEM:	پشتیبانی کنید
برجسته کردن:	CS-54B Compactor controller , 362-3189 ECU controller , Compactor replacement controller

توضیحات محصول

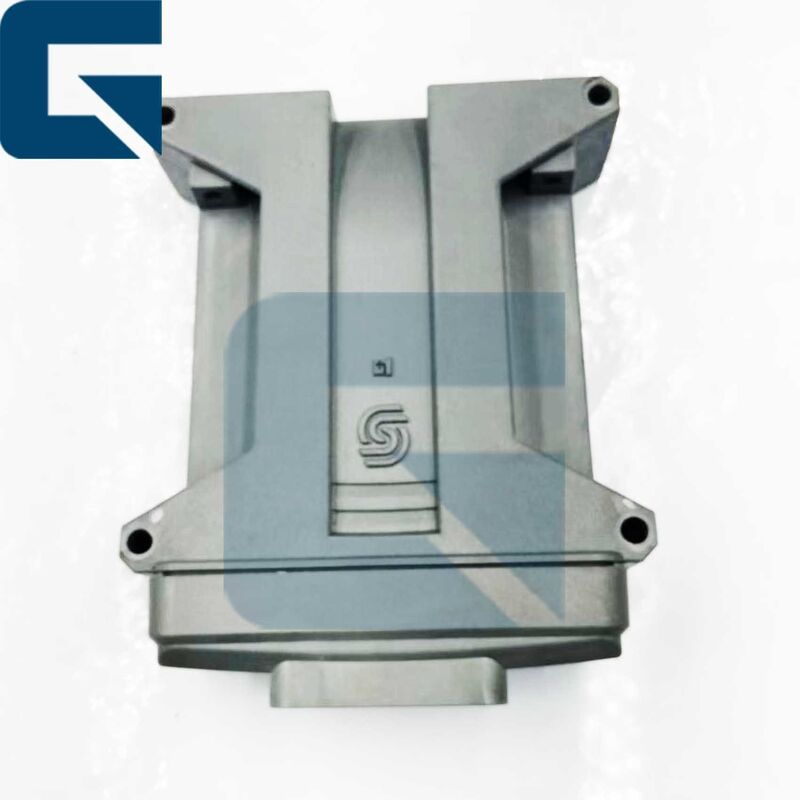

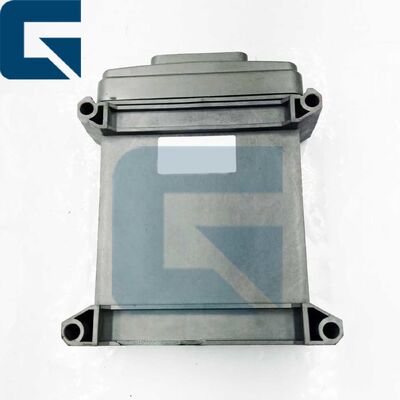

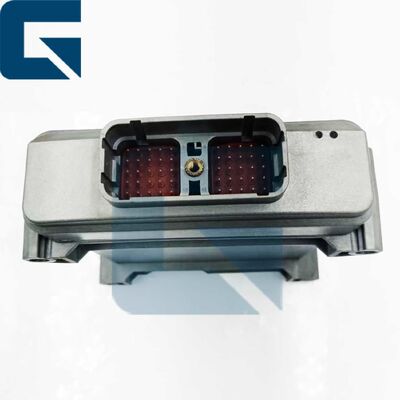

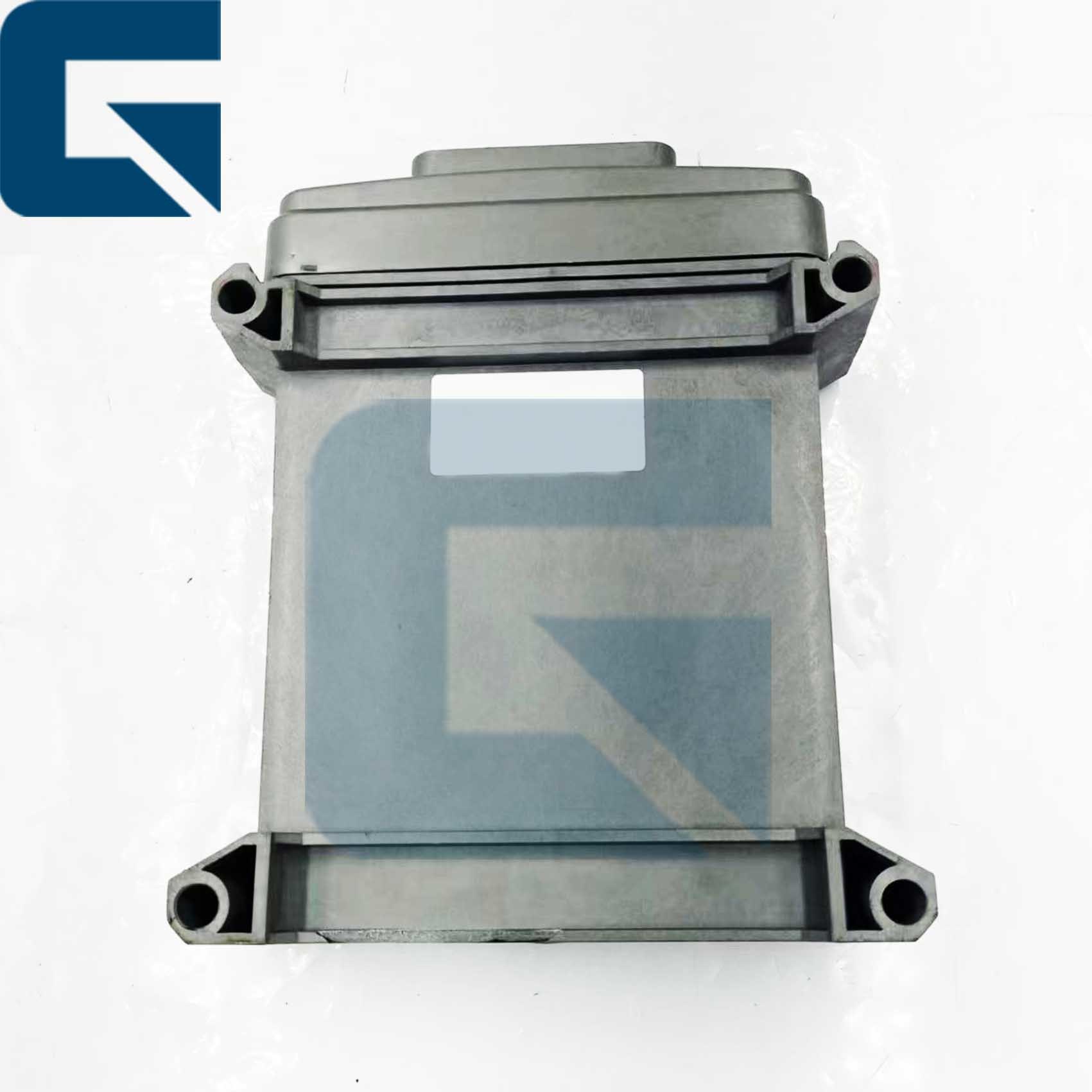

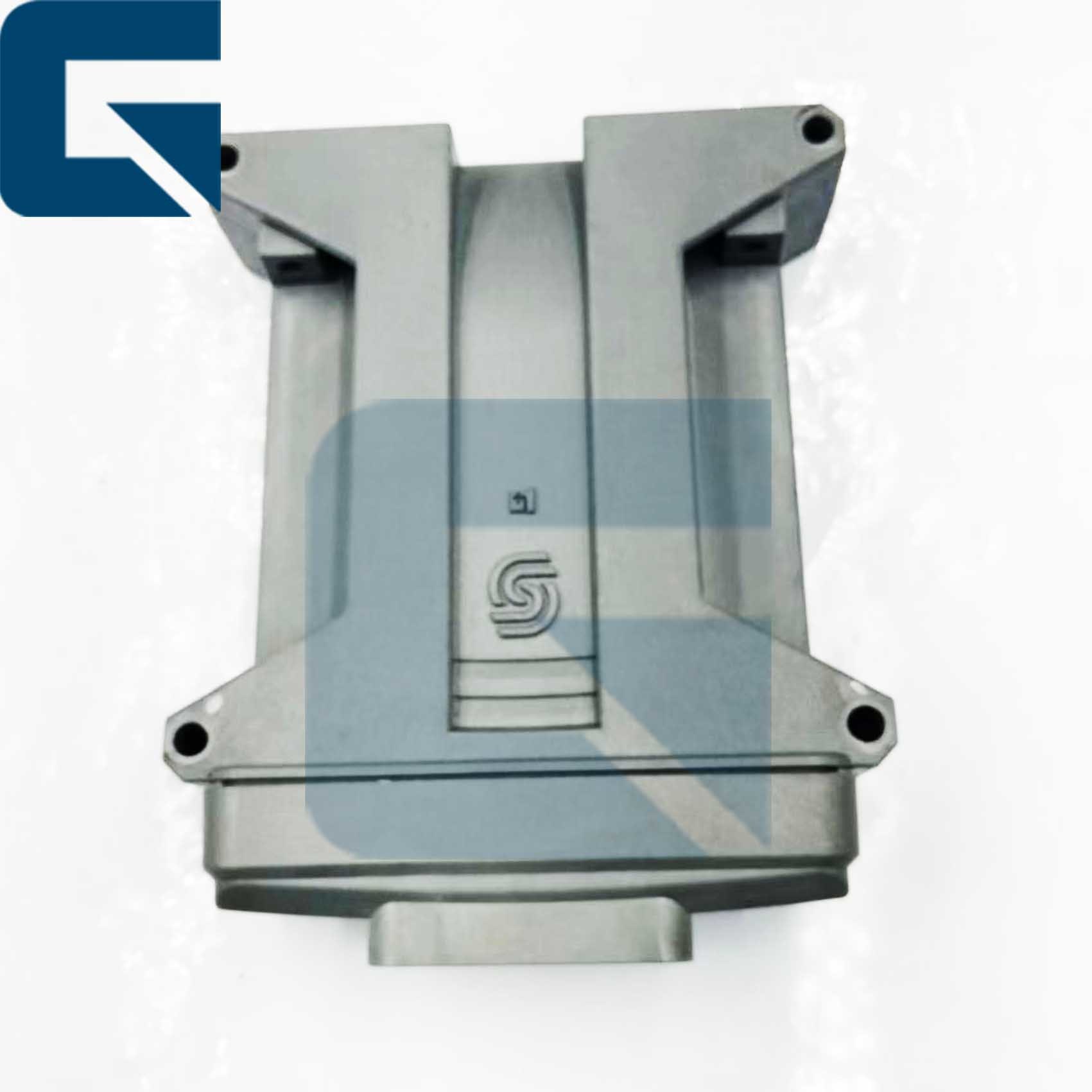

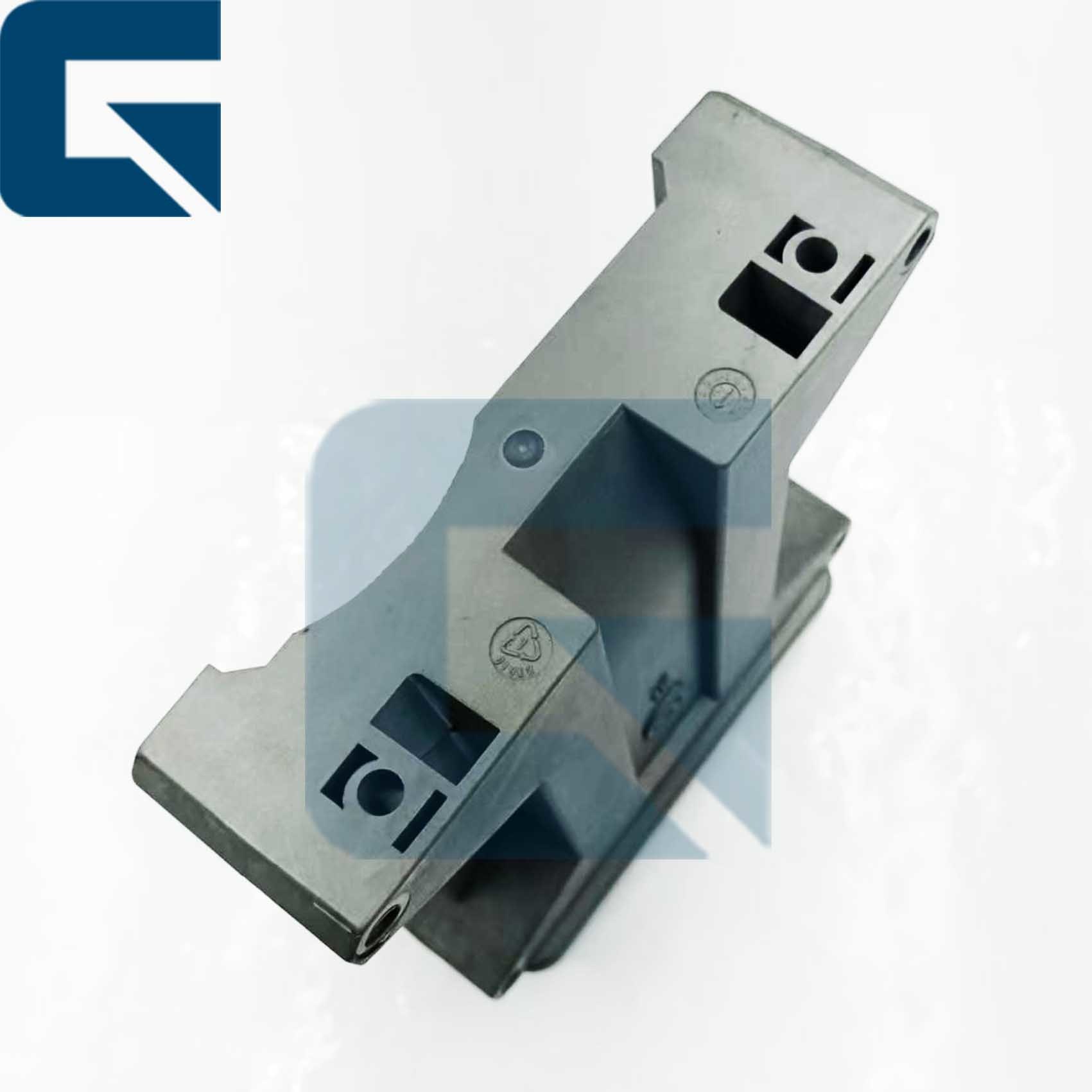

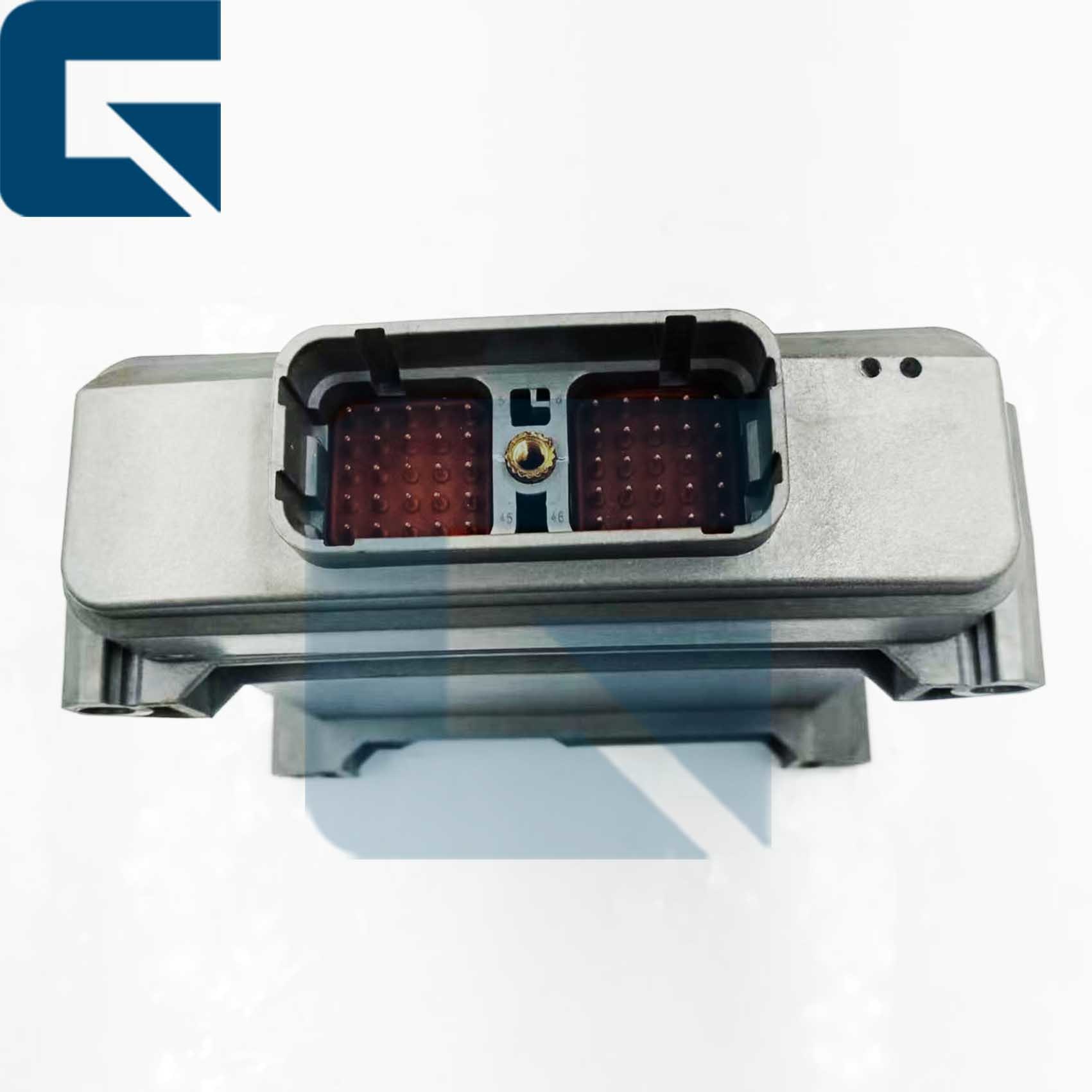

362-3189 Controller for CS-54B Compactor

High-quality replacement controller designed specifically for CS-54B Compactor applications.

Product Specifications

Product Name	Controller
Part Number	362-3189
Brand Name	JIAJUE
Model	CS-54B
Condition	Used
Availability	Rich Stock
Approximate Weight	2KG
Size (per unit)	25cm x 20cm x 10cm
Delivery Time	Usually delivered within 1-3 days after payment

Product Images

Related Products

Frequently Asked Questions

Installation Time for ECM on Machine

Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.

Programming & Testing: 30-60 minutes.

Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.

Determining ECM Fault and Replacement Need

The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.

Payment & Order Information

Payment Methods: T/T, L/C, PayPal, etc.

Stock Availability: Rich stock available.

Order Shipping: When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.

Step-by-Step Testing Guide

Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
Inspect: Check the ECU for physical damage or loose connections.
Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
Document: Keep a record of all tests, codes, and results for future reference.

Quick Checklist for Buyers

Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
