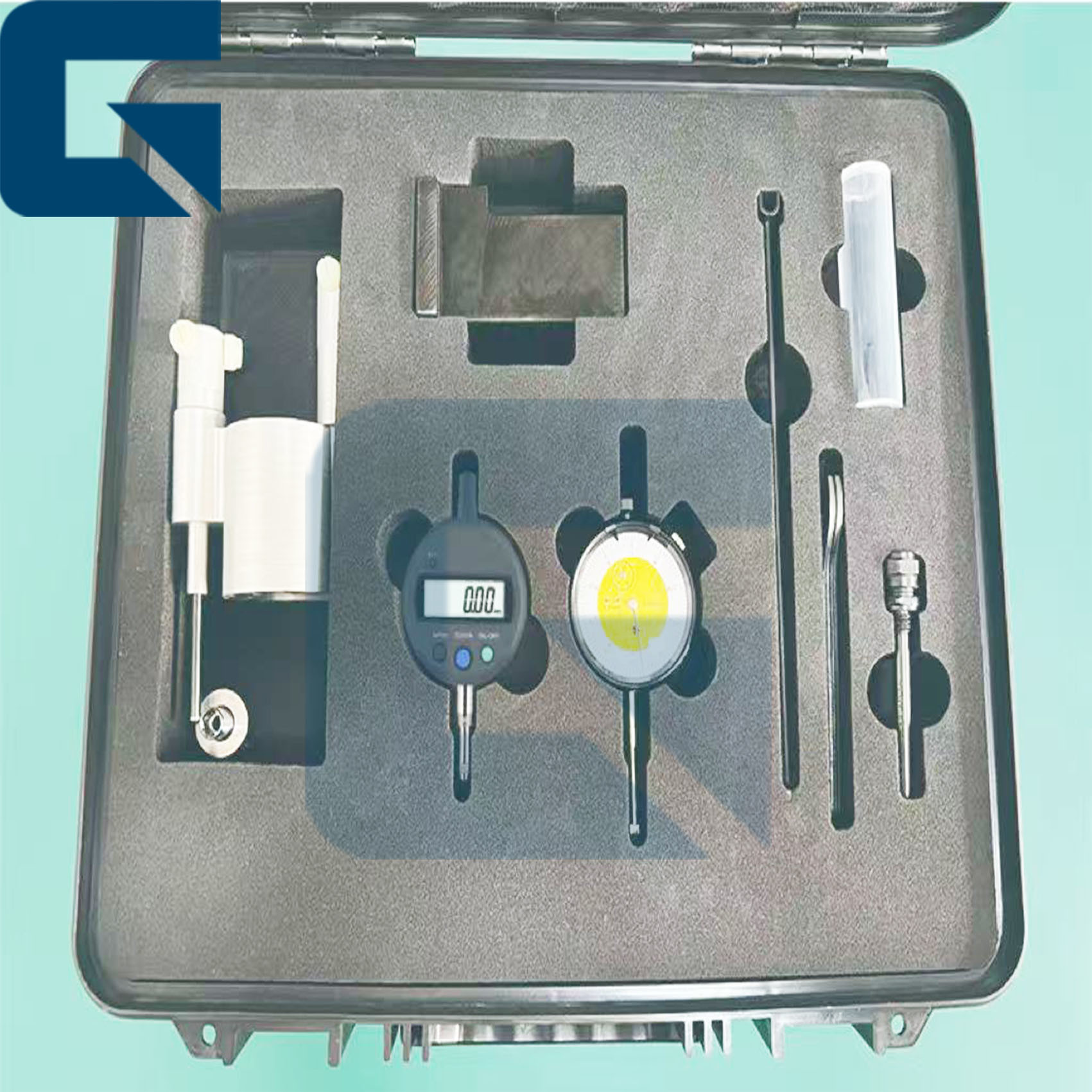

9U-5132 Timing and Fuel System Setting Tool Gp for 3508B Generator

1. 9U-5137 Timing Fixture

2. 4C-8753 Extended Collet

3. 9U-5138 Set Gauge

4. 6V-3075 Metric Dial Indicator

5. 1U-8869 Digital Dial Indicator (Optional)

6. 6V-7918 Wrench

7. 8T-2684 Rack Synchronization Gauge, 12.7 mm (.50 in)

8. 9U-5220 Extension Rod

9. 9U-6273 Rod Sleeve Extension

10. 122-0449 Rod Sleeve Extension

11. 122-0451 Extension Rod

12. 129-8602 Solenoid Driver

13. 5P-7263 Contact Point 76.2mm

14. 9S-8883 Contact Point 12.7mm

15. 8S-3675 Contact Point 3mm


The Fuel System Setting Timing Tool is used to achieve accurate synchronization of fuel system components. It ensures that the fuel injectors and pump are aligned correctly with the engine's timing, maintaining engine performance and fuel efficiency. Accurate calibration helps prevent engine knock, reduces emissions, and improves overall operational smoothness. It plays a necessary role in both routine maintenance and troubleshooting to ensure the engine operates at peak efficiency.
