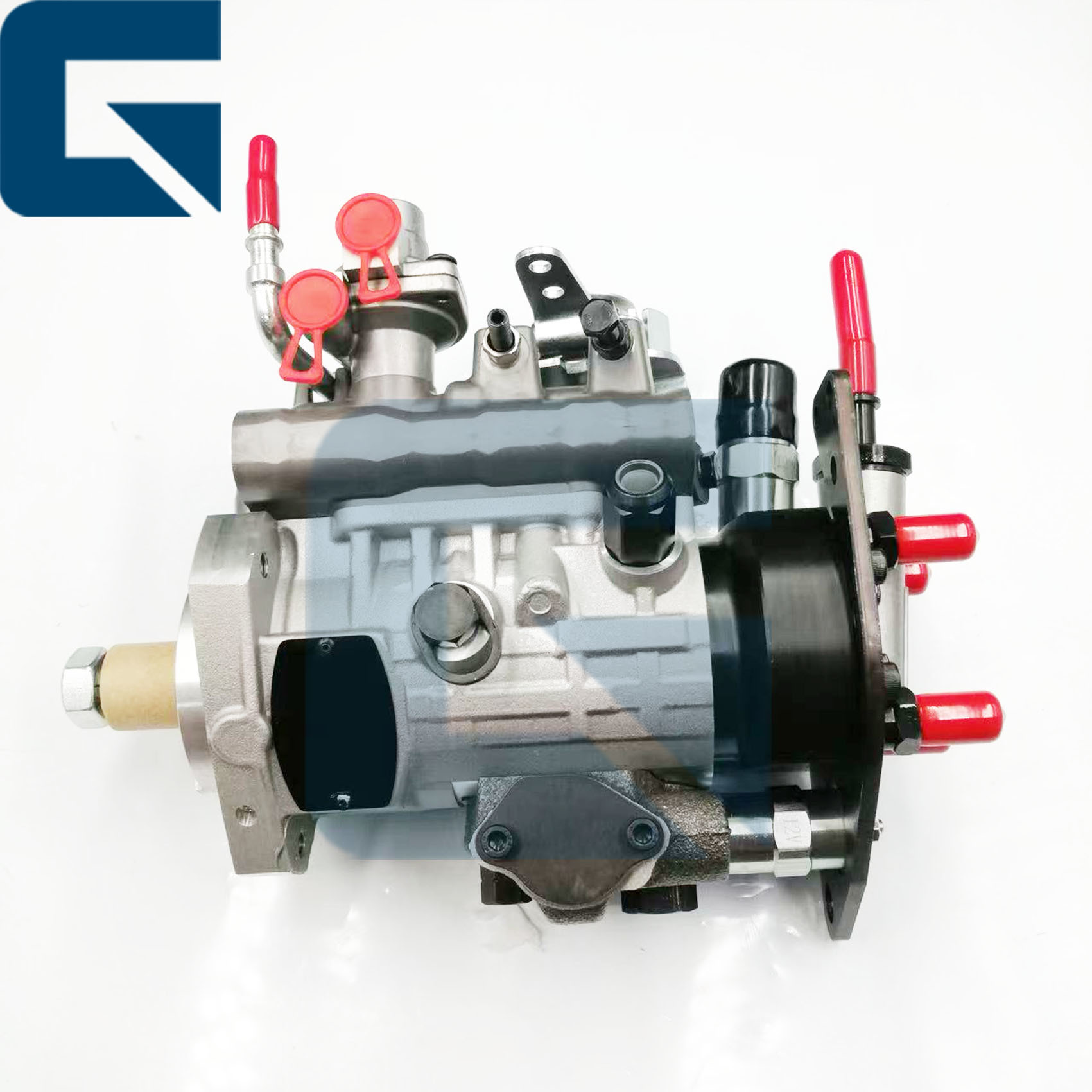

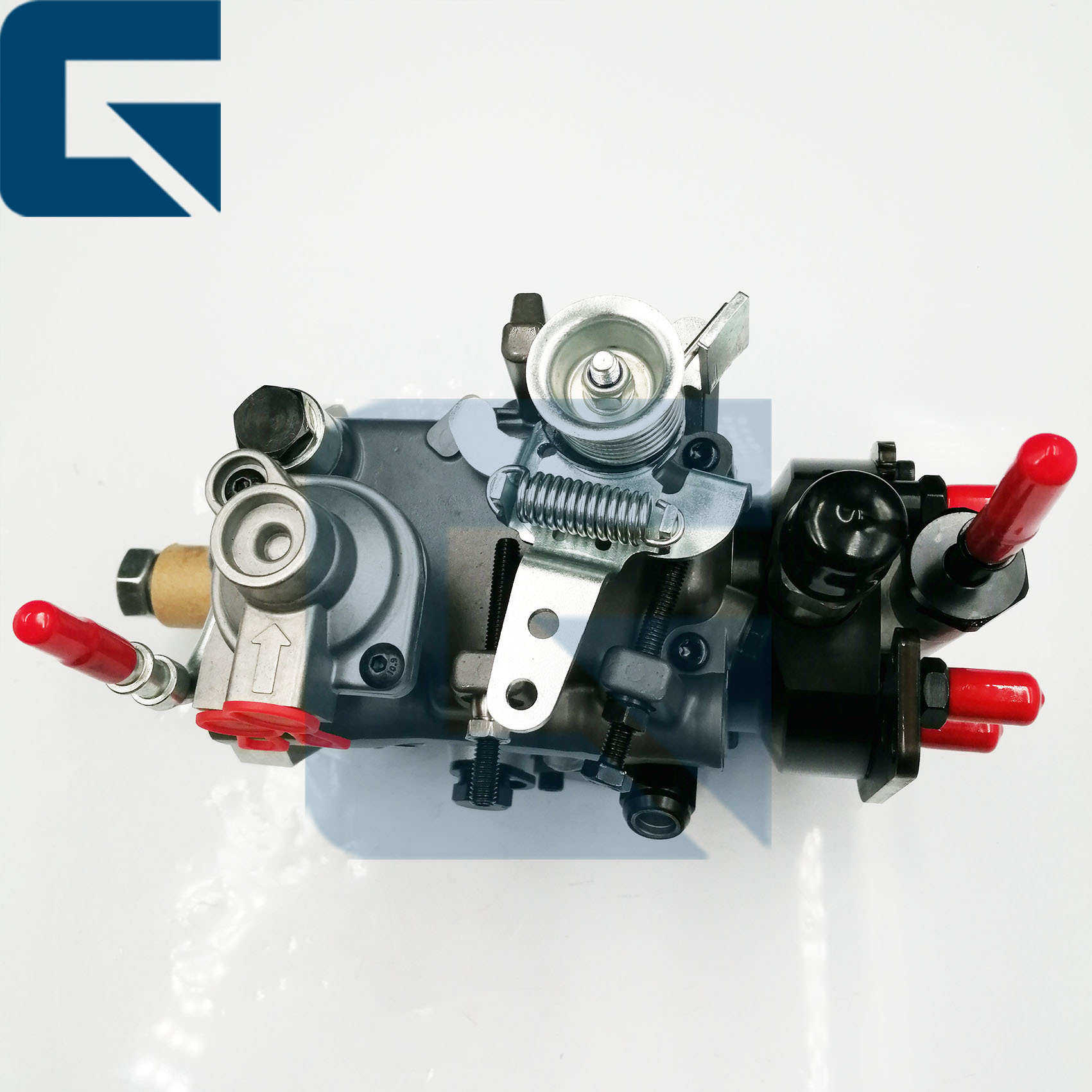

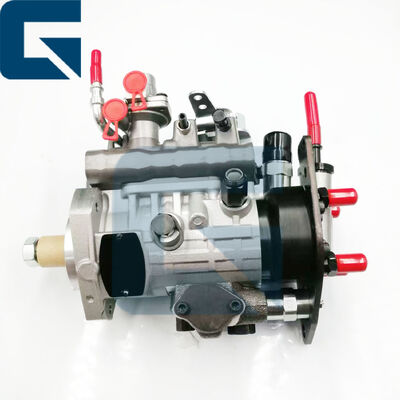

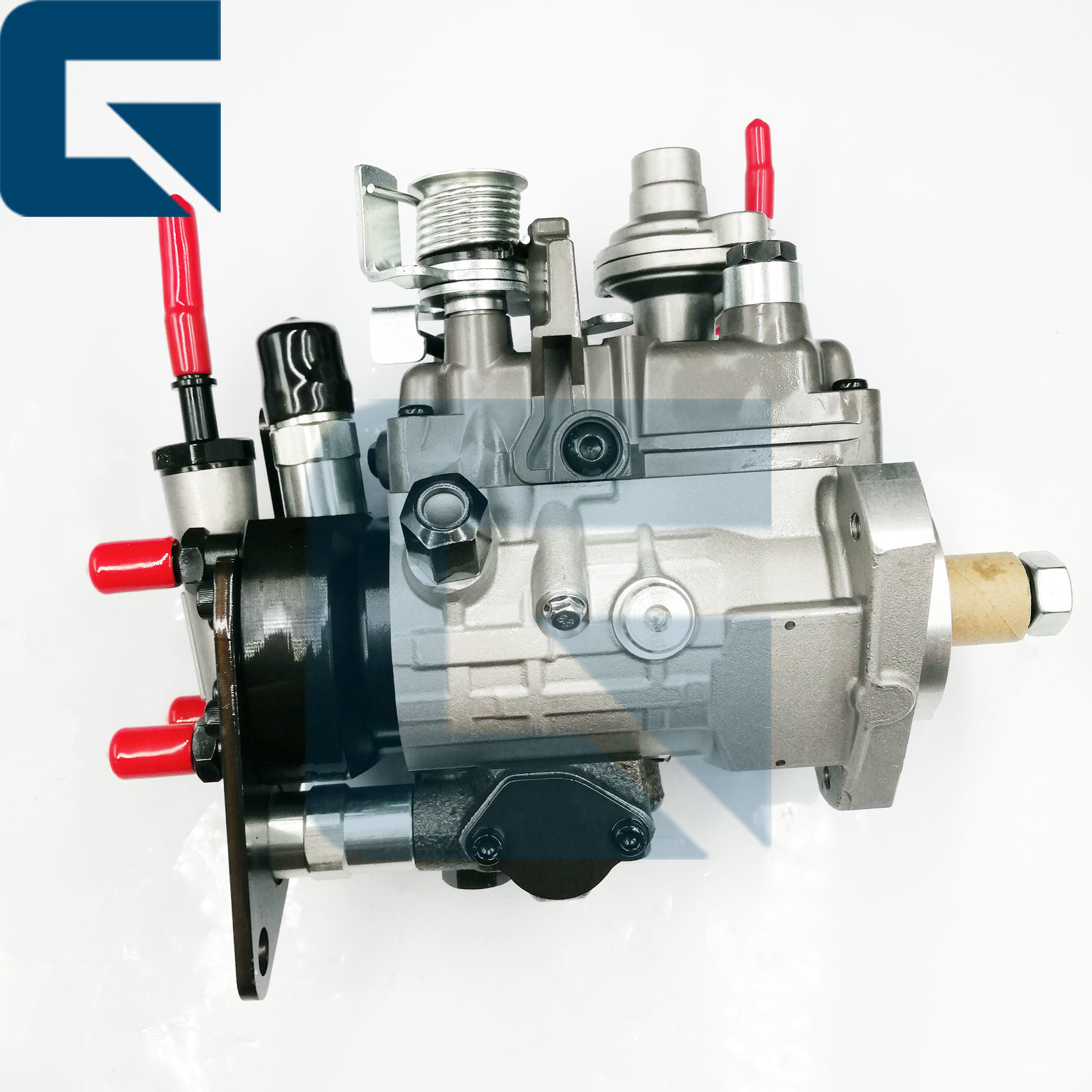

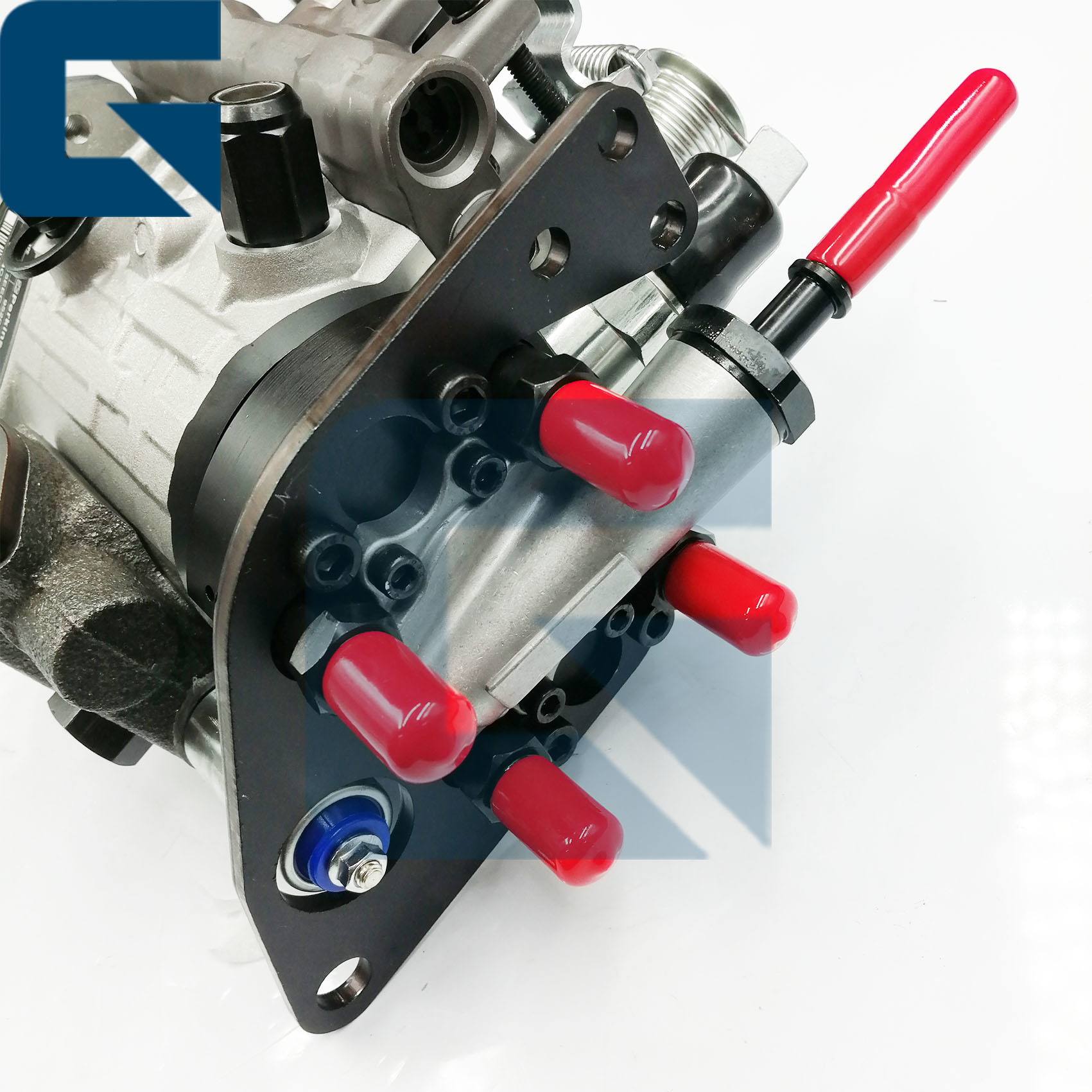

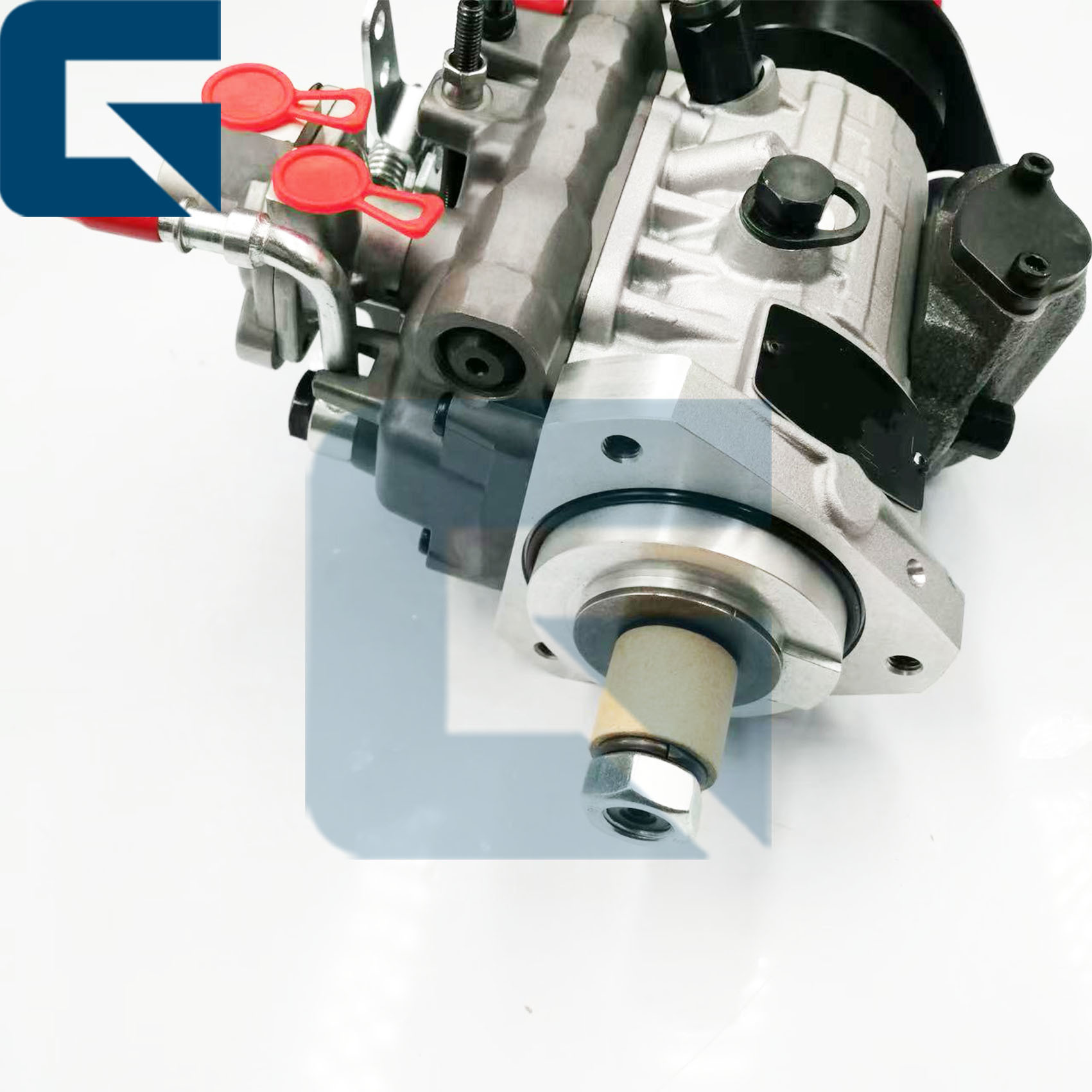

9520A194G Fuel Injection Pump for 1104D-44T Engine
High-quality replacement fuel injection pump designed for optimal engine performance and reliability in 1104D-44T engines.
Product Specifications
| Product Name |
Fuel Pump |
| Part Number |
9520A194G |
| Brand Name |
JIAJUE |
| Condition |
New |
| Availability |
Rich Stock |
| Approximate Weight |
8KG |
| Size (for 1pc) |
35cm x 30cm x 20cm |
| Delivery Methods |
DHL FedEx TNT UPS |
| Warranty |
3 months |
| Shipment |
Dispatched within 24-48 hours |
Product Images
Related Products
Frequently Asked Questions
How do I install my Fuel Injection Pump after purchasing it?
Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions for the 9 400 030 739 injection pump.
What precautions should I take before installing my Fuel Injection Pump?
System flushing is crucial! Before installing the new pump, the entire fuel system (tank, lines, and rail) must be cleaned to remove metal debris from the old failed pump.
Is my machine compatible with this part number of Fuel Injection Pump?
If you're not sure if this fits your machine, please send us your Engine Serial Number (ESN) for free verification.
How long will it take to receive my package after I make the payment?
This depends on your country and region, and the customs clearance time. Please contact us with your address and postal code so we can check shipping costs and estimate delivery time.
Step-by-Step Installation Guide
System Decontamination (System Flush)
Before removing the old pump, drain and flush the fuel tank and fuel lines. Metal shavings from a failed pump can circulate and instantly destroy your new unit.
Inspect the Transfer Pump & Filters
Replace both the primary and secondary fuel filters. Ensure you use high-efficiency (2-micron) filters. Inspect the fuel transfer pump for wear; if it's weak, the high-pressure pump won't receive enough fuel.
Oil Quality Check
Change the engine oil and oil filter. HEUI pumps use engine oil to create high-pressure fuel injection. Dirty or incorrect viscosity oil will cause immediate performance issues.
Lubrication on Install
Apply clean engine oil to the O-rings and the pump drive gear. Warning: Never dry-start. Fill the pump with clean diesel through the inlet before connecting the lines.
Troubleshooting Guide
| Issue |
Possible Cause |
Solution |
| Engine Won't Start |
Air trapped in the fuel lines |
Bleed the fuel system thoroughly |
| Low Fuel Pressure |
Clogged fuel filters or leaking SCV |
Replace filters; inspect SCV for debris |
| Black Smoke / Power Loss |
Contaminated fuel causing plunger wear |
Drain fuel tank; use high-quality diesel |
| Loud Knocking Noise |
Improper timing or loose mounting bolts |
Re-calibrate timing and check bolt torque |
Installation Video
