168-8248 Wiring Harness 1688248 for 120H 140H Motor Grader

Basic Information

Place of Origin:	CHINA
Brand Name:	Jiajue
Model Number:	120H 140H

Minimum Order Quantity:	1pc
Price:	Please send by email or WhatsApp
Packaging Details:	168-8248 Wiring Harness 1688248 for 120H 140H Motor Grader is Packed in standard export packing under customer's requirement
Delivery Time:	1-5 Works day
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	100PCS/MONTH

Get Best Price Contact Now

Detail Information

Product Name:	Wiring Harness	Material:	Steel
Place Of Origin:	Guangdong,China	MOQ:	1
OEM:	Support
Highlight:	168-8248 wiring harness for 120H grader , 140H motor grader wiring harness , excavator spare parts with warranty

Product Description

168-8248 Wiring Harness for 120H 140H Motor Grader

High-quality wiring harness specifically engineered for 120H 140H Motor Grader. Manufactured by JIAJUE with rigorous quality standards and comprehensive testing.

Product Specifications

Product Name	Wiring Harness
Part Number	168-8248
Engine Model	120H 140H
Type	Excavator Parts
Place of Origin	GUANGZHOU
Brand Name	JIAJUE
MOQ	1 Piece
Condition	New
Availability	Rich Stock
Approximate Weight	1KG
Size (per piece)	30cm x 25cm x 15cm
Shipment	Dispatched within 3 days

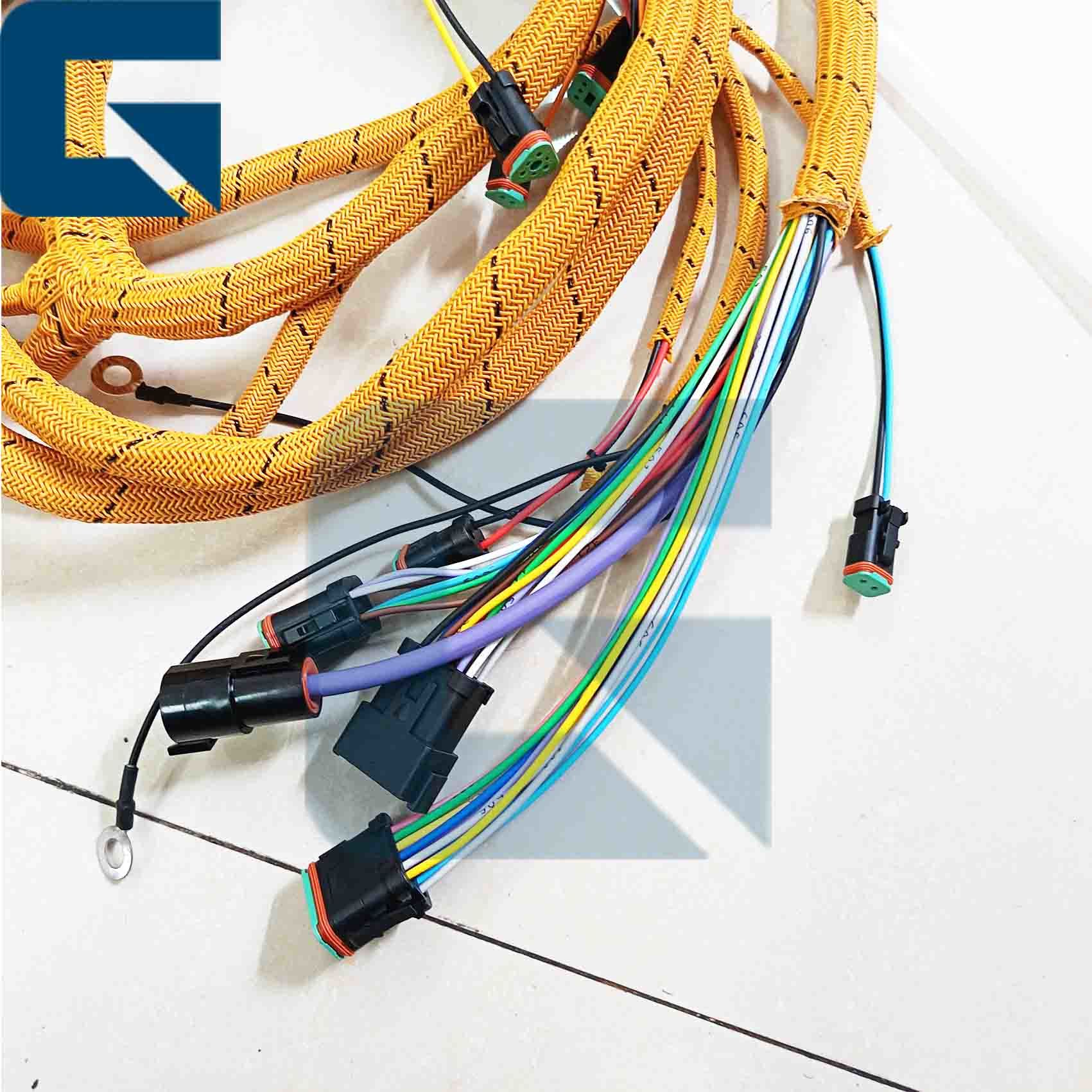

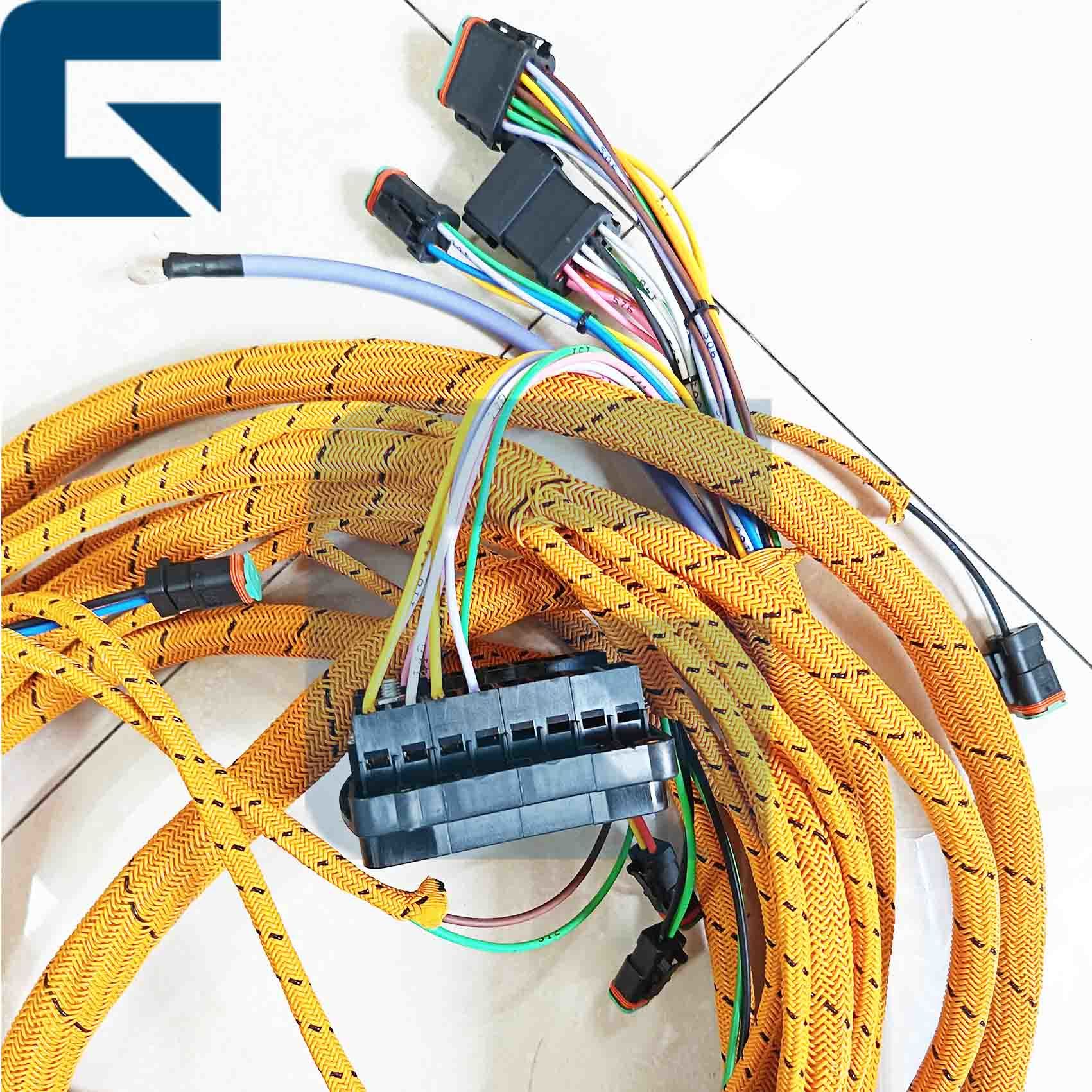

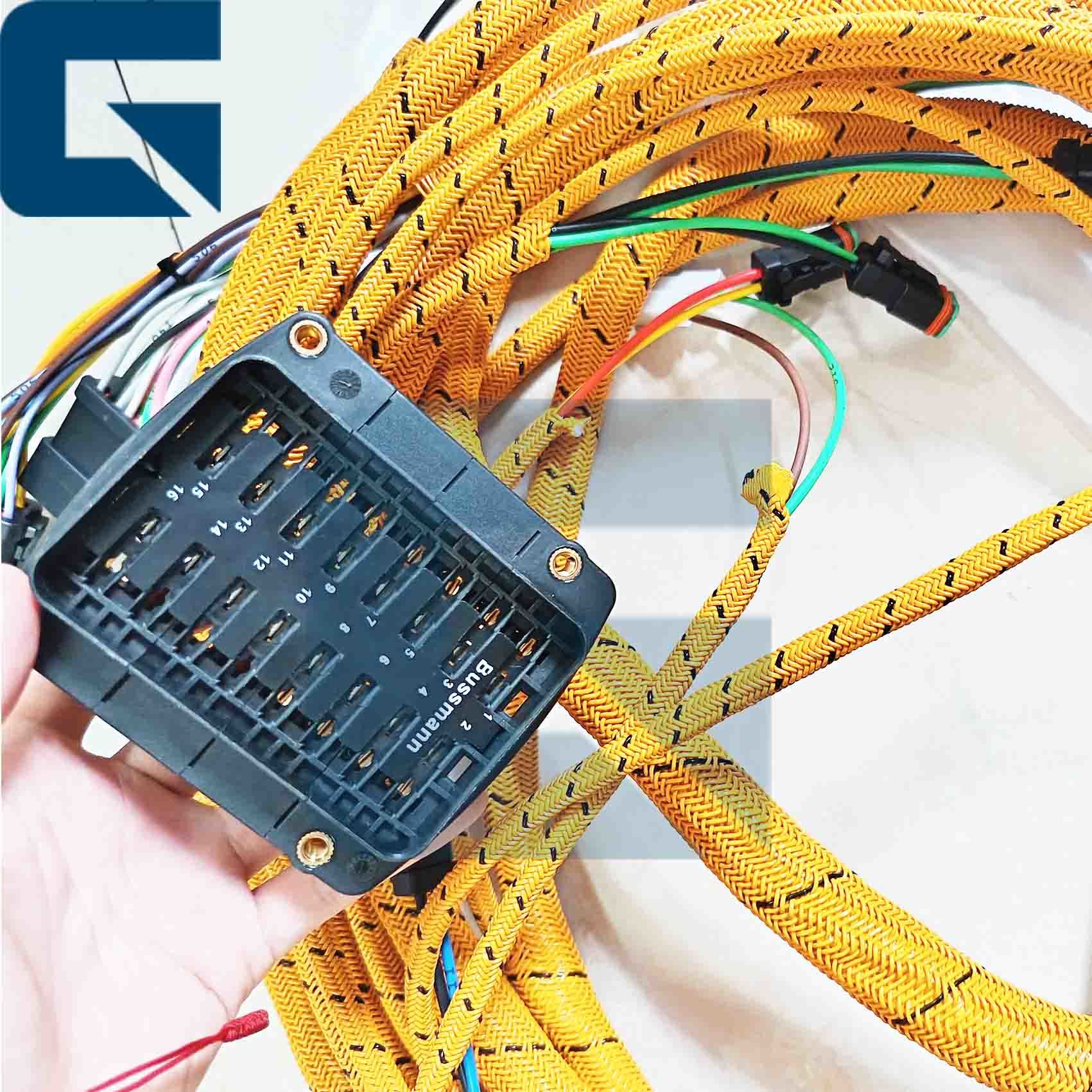

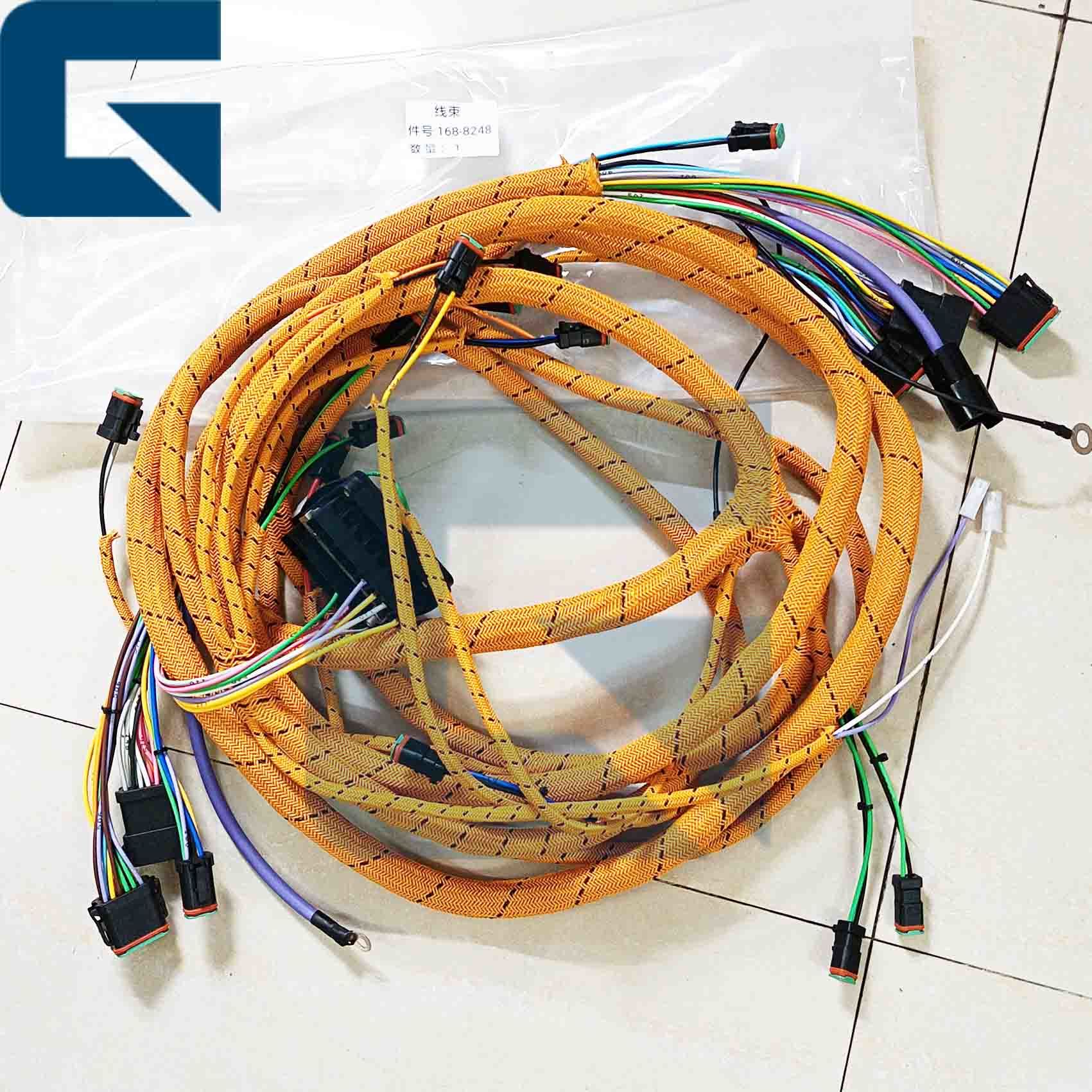

Product Images

Frequently Asked Questions

How long does installation take?

Installing a complete wiring harness under normal conditions requires 4-6 hours by mechanics (2 people working together).

How to identify harness damage?

Signs include: drive motor solenoid not working, walking speed switching malfunction, fault codes appearing or disappearing when walking or shaking the wiring harness.

How is compatibility with 120H 140H ensured?

We verify:

Circuit functions consistency
Number and arrangement of plugs and pins
Electrical voltage parameter matching

What payment methods do you accept?

T/T, L/C, PayPal, and other standard payment methods.

Do you have stock?

Yes, we maintain rich stock for immediate dispatch.

Step-by-Step Testing Guide

HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Connect each plug of the wire harness to the corresponding hole on the test bench
Each time a switch is turned on, a function is tested. The corresponding indicator light turns on, indicating normal function

Quick Installation Checklist

Preparation	Requirement
Battery	Must be disconnected
Old Harness	Compare with the new one first
Pins/Plugs	Clean and straight
Routing	Smooth path, no sharp edges
Fastening	Secure but not over-tightened
