20Y-06-48314 Wiring Harness 20Y0648314 for PC200-8 Excavator

Brand Name: JIAJUE
Model Number: PC200-8
Place of Origin: CHINA
Minimum Order Quantity: 1
Price: Please send mail or WhatsApp
Supply Ability: 1000PCS/MONTH
Tags

excavator spare parts

digger spare parts

excavator machine parts

Product Details

Part Number: 20Y-06-48314 MOQ: 1
Highlight

PC200-8 excavator wiring harness

,

20Y-06-48314 wiring harness

,

excavator wiring harness with warranty

Product Description

20Y-06-48314 Wiring Harness for PC200-8 Excavator
20Y-06-48314 Wiring Harness 20Y0648314 for PC200-8 Excavator
Product Specifications
Product Name Wiring Harness
Part Number 20Y-06-48314
Brand Name JIAJUE
Model PC200-8
Condition Brand New
Availability Rich Stock
Delivery Time Usually delivery 1-3 days after payment
Approximate Weight 6KG
Size (for 1pc) 20cm x 30cm x 15cm
Delivery Methods DHL FedEx TNT UPS
Shipment Dispatched within 24-48 hours
Payment Methods TT, Western Union, Credit Card, PayPal
Product Photos & Testing

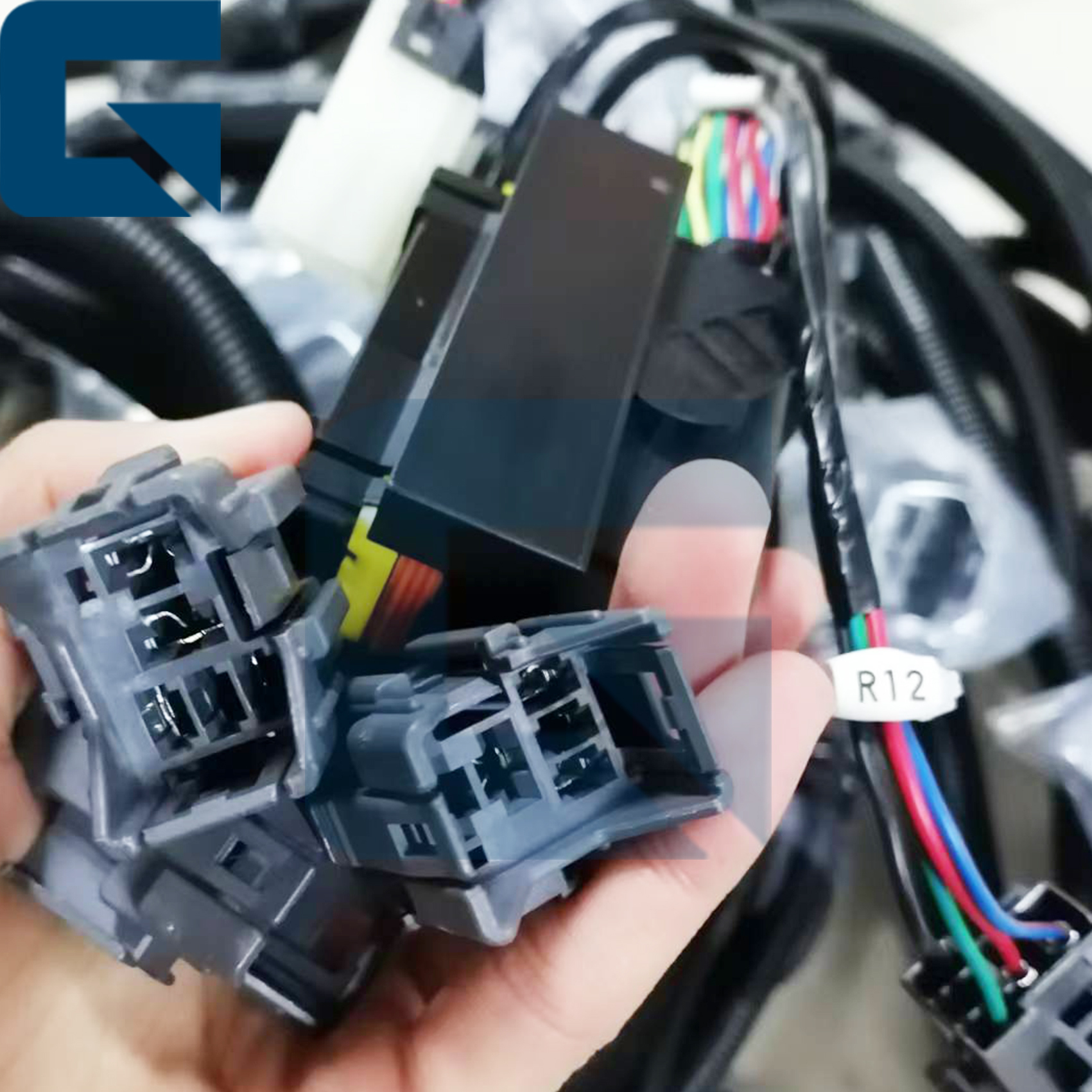

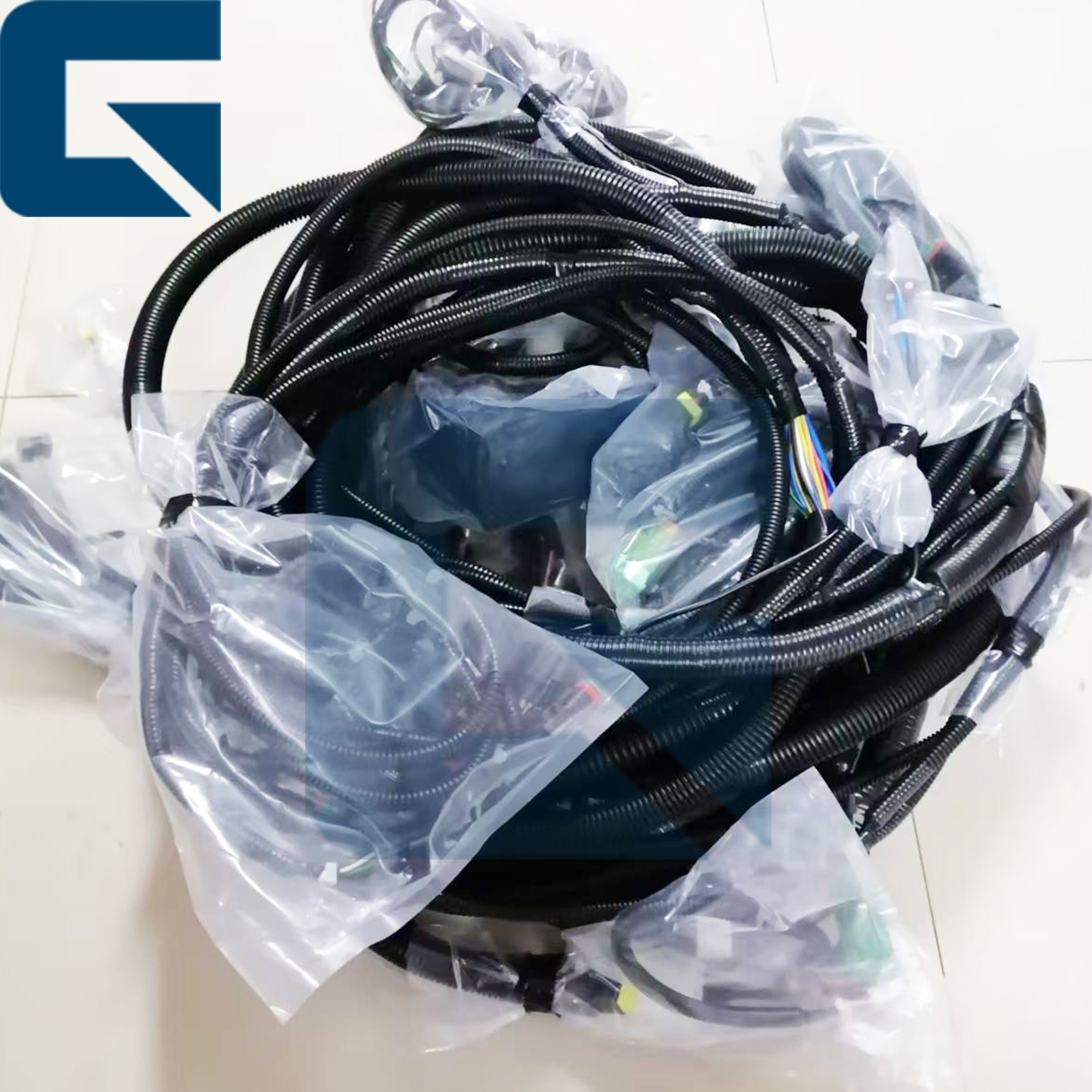

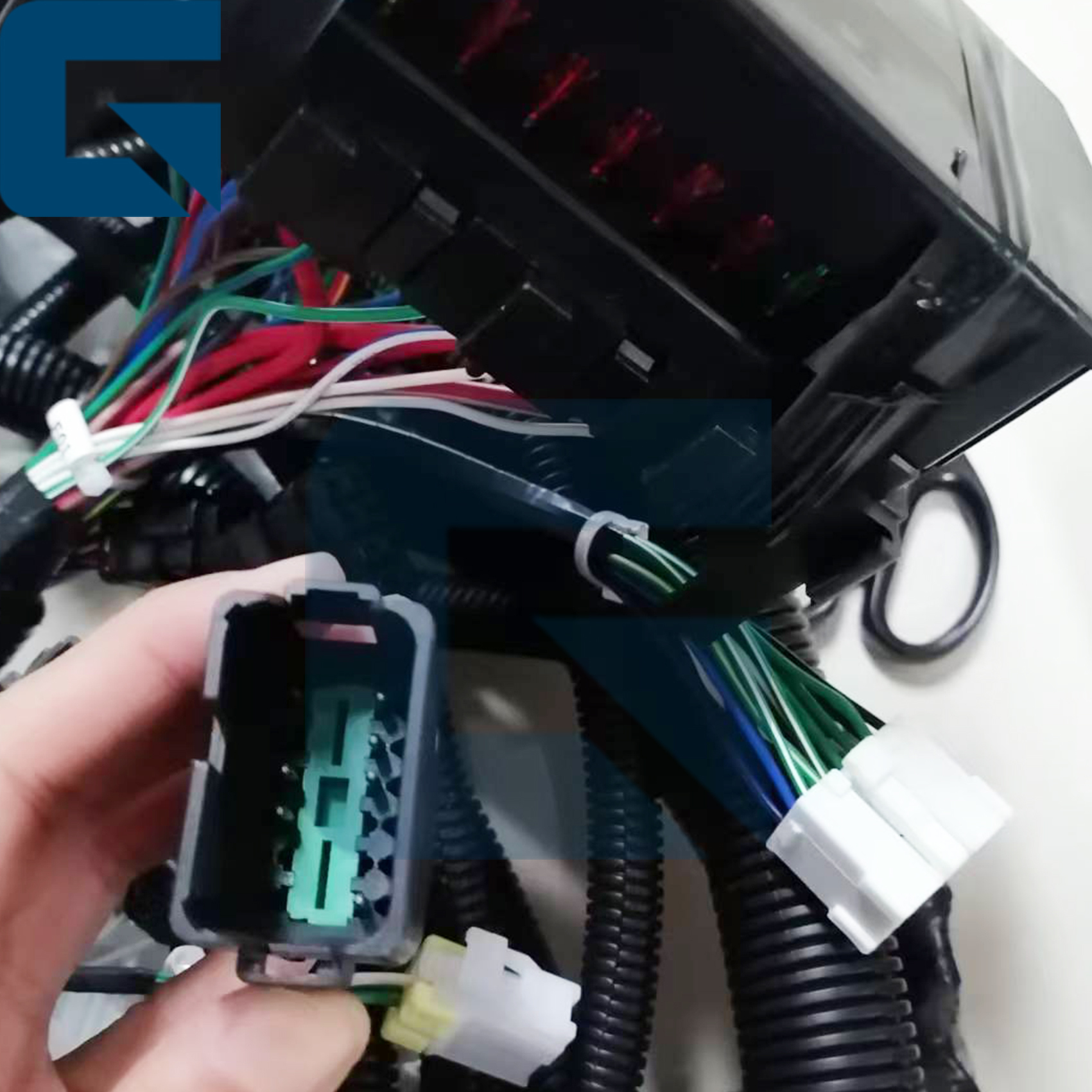

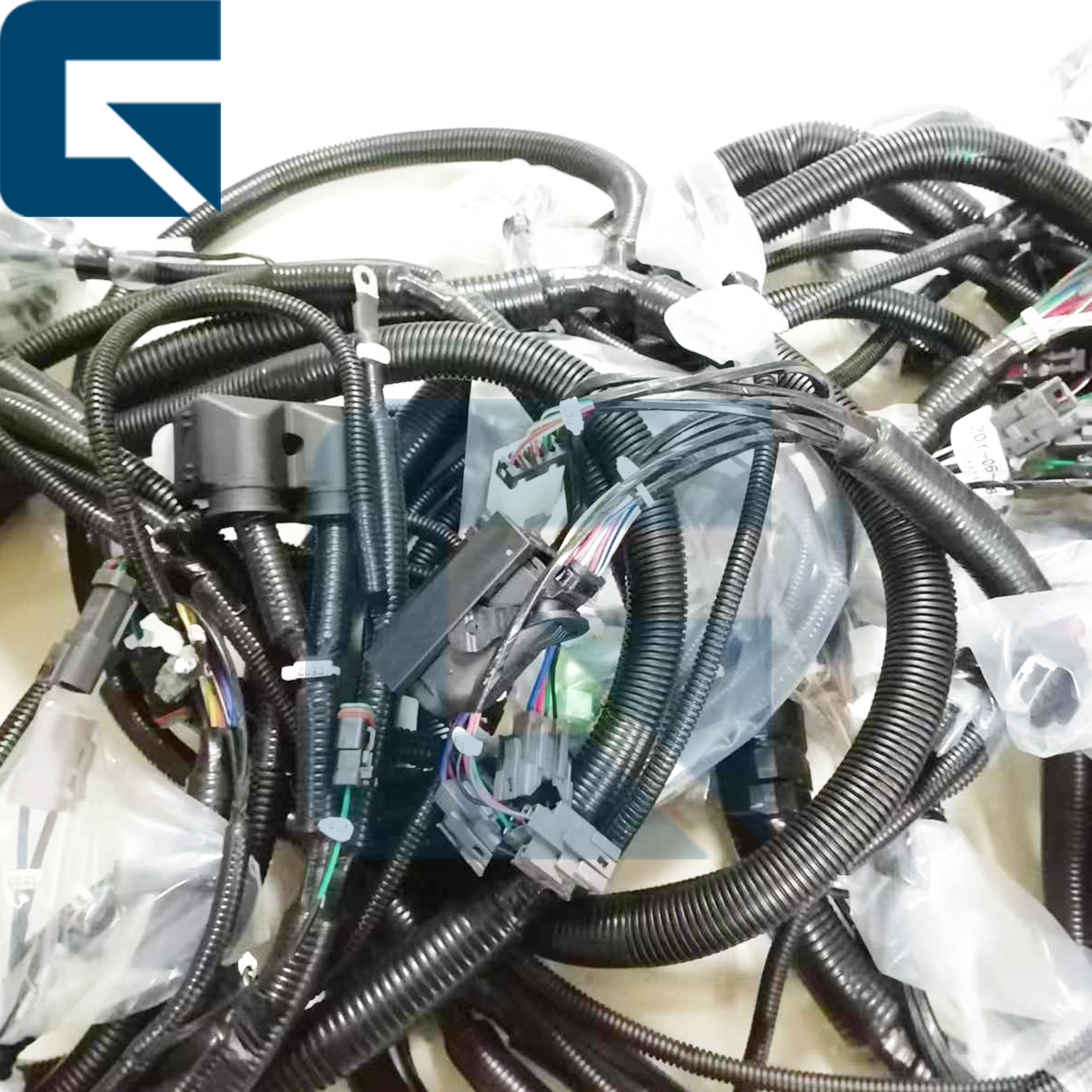

Wiring harness product photo showing detailed connections Close-up view of wiring harness connectors Wiring harness installation demonstration Quality inspection of wiring harness components Final product packaging and labeling
Related Products
Related excavator parts and accessories
Frequently Asked Questions
Q1: How long does it take to install this harness to the machine?
Installing a complete 20Y-06-48314 harness, under normal conditions and without additional faults, requires 4-6 hours by mechanic (2 people working together).
Q2: How do we determine if a chassis harness is damaged?
E320D machine walking abnormality: drive motor solenoid not working, walking speed switching malfunction, fault codes appear or disappear when walking or shaking the wiring harness.
Q3: How does the chassis harness ensure compatibility with the PC200-8 excavator?
It need us check: 1. Whether the circuit functions are consistent; 2. Whether the number and arrangement of the plugs and pins are consistent; 3. Whether the electrical voltage parameters are matched.
Q4: What's your payment method?
Our payment method has T/T, L/C, PayPal, etc.
Q5: Do you have stock?
Rich stock
Step-by-Step Testing Guide
Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Connecting each plug of the wire harness to the corresponding hole on the test bench
  2. Each time a switch is turned on, a function is tested. The corresponding indicator light turns on, indicating that the function is normal.
Quick Checklist for Buyers
Preparation Requirement
Battery Must be disconnected
Old Harness Compare with the new one first
Pins/Plugs Clean and straight
Routing Smooth path, no sharp edges
Fastening Secure but not over-tightened
Customer's Reviews
Customer reviews and testimonials
Company Profile
Jiajue Machinery company overview and profile
Exhibition
Jiajue Machinery exhibition booth Jiajue Machinery exhibition display
Factory Environment
Jiajue Machinery factory facilities and environment
Packaging & Shipping
Product packaging quality Shipping preparation and logistics process

20Y-06-48314 Wiring Harness 20Y0648314 for PC200-8 Excavator 13

Product Highlights

20Y-06-48314 Wiring Harness for PC200-8 Excavator 20Y-06-48314 Wiring Harness 20Y0648314 for PC200-8 Excavator Product Specifications Product Name Wiring Harness Part Number 20Y-06-48314 Brand Name JIAJUE Model PC200-8 Condition Brand New Availability Rich Stock Delivery Time Usually delivery 1-3 ...
