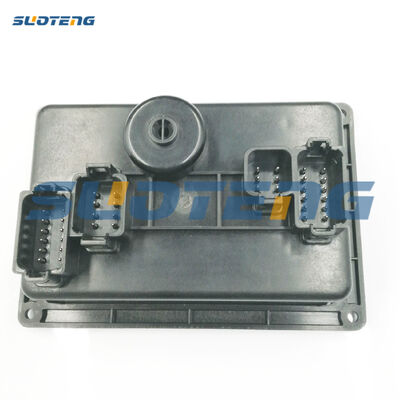

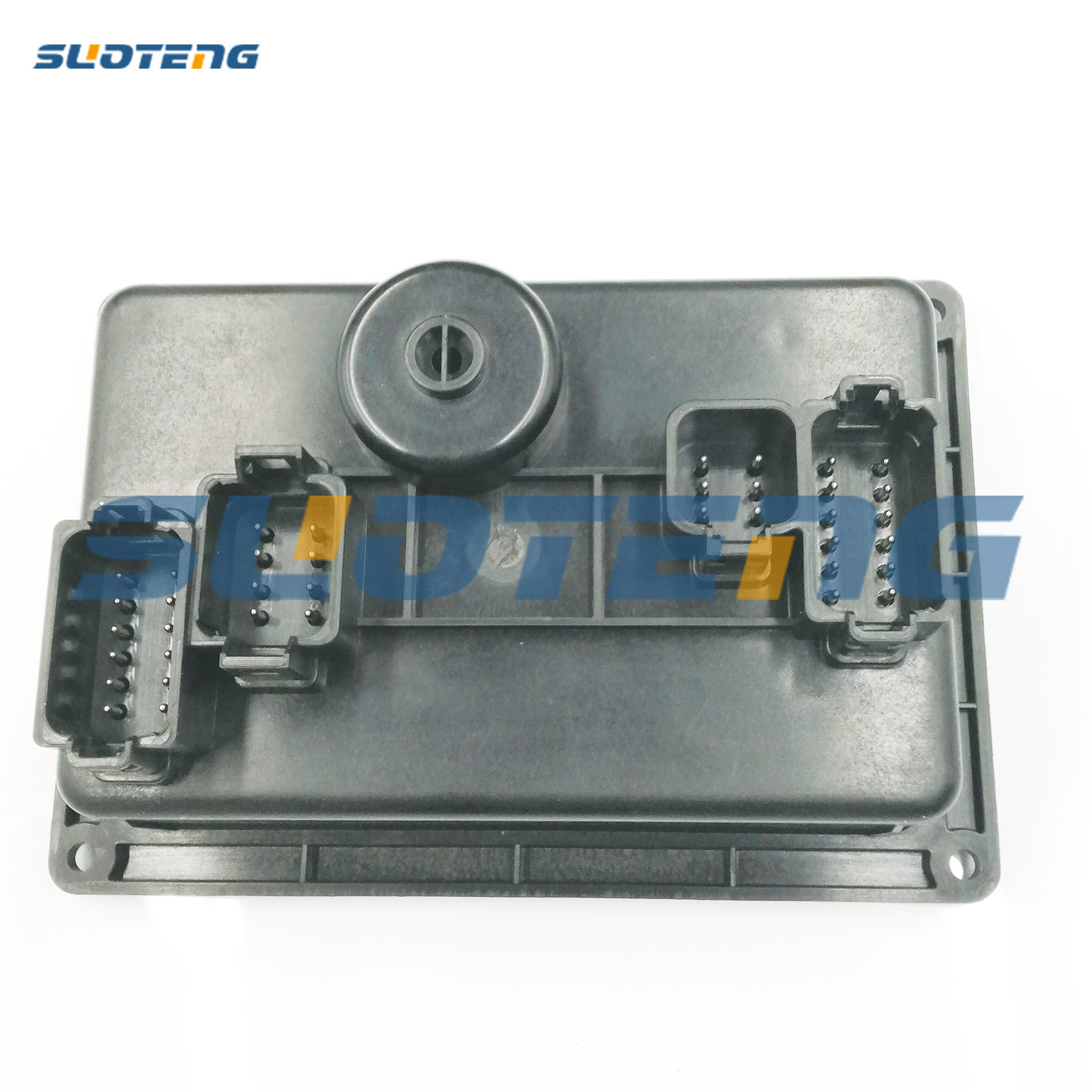

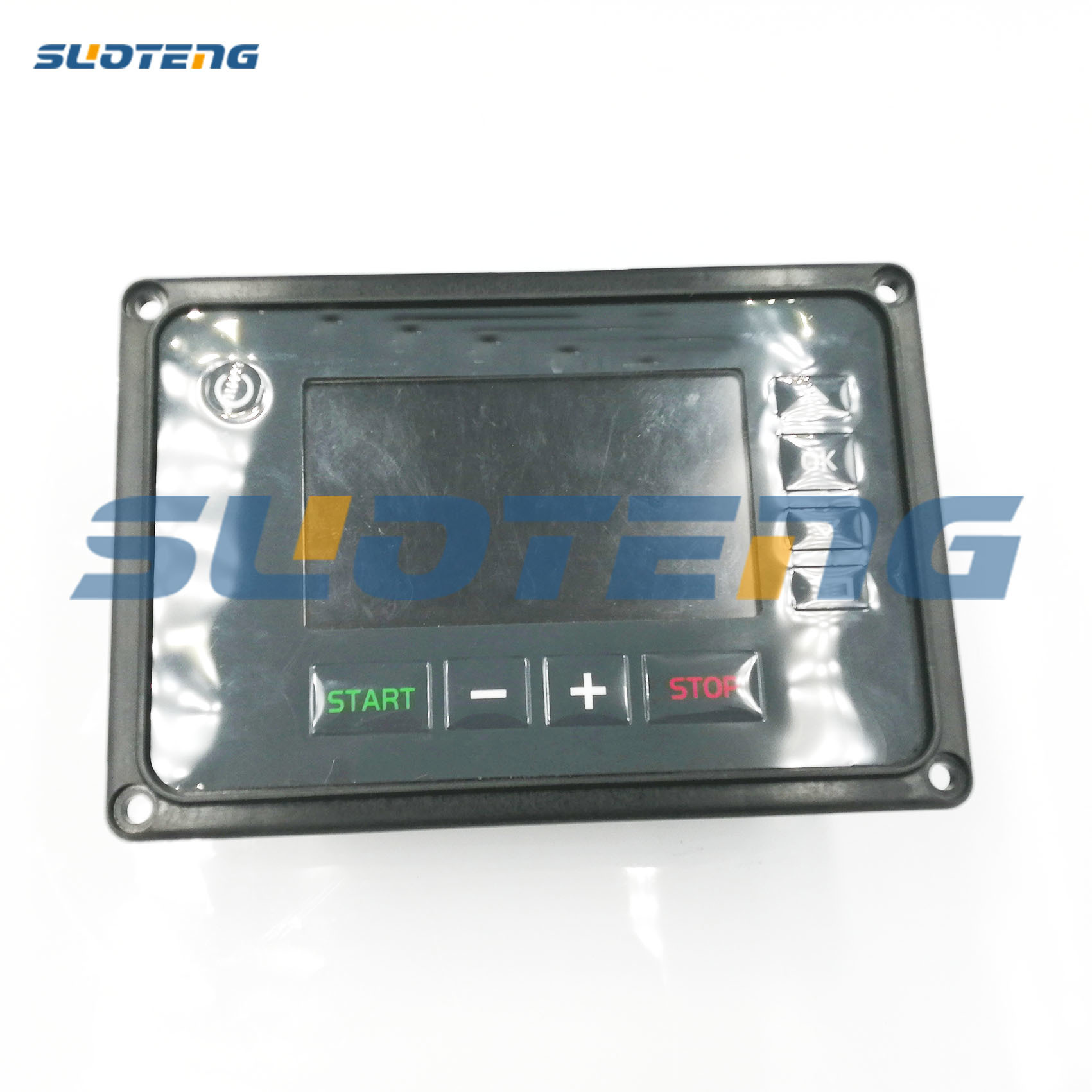

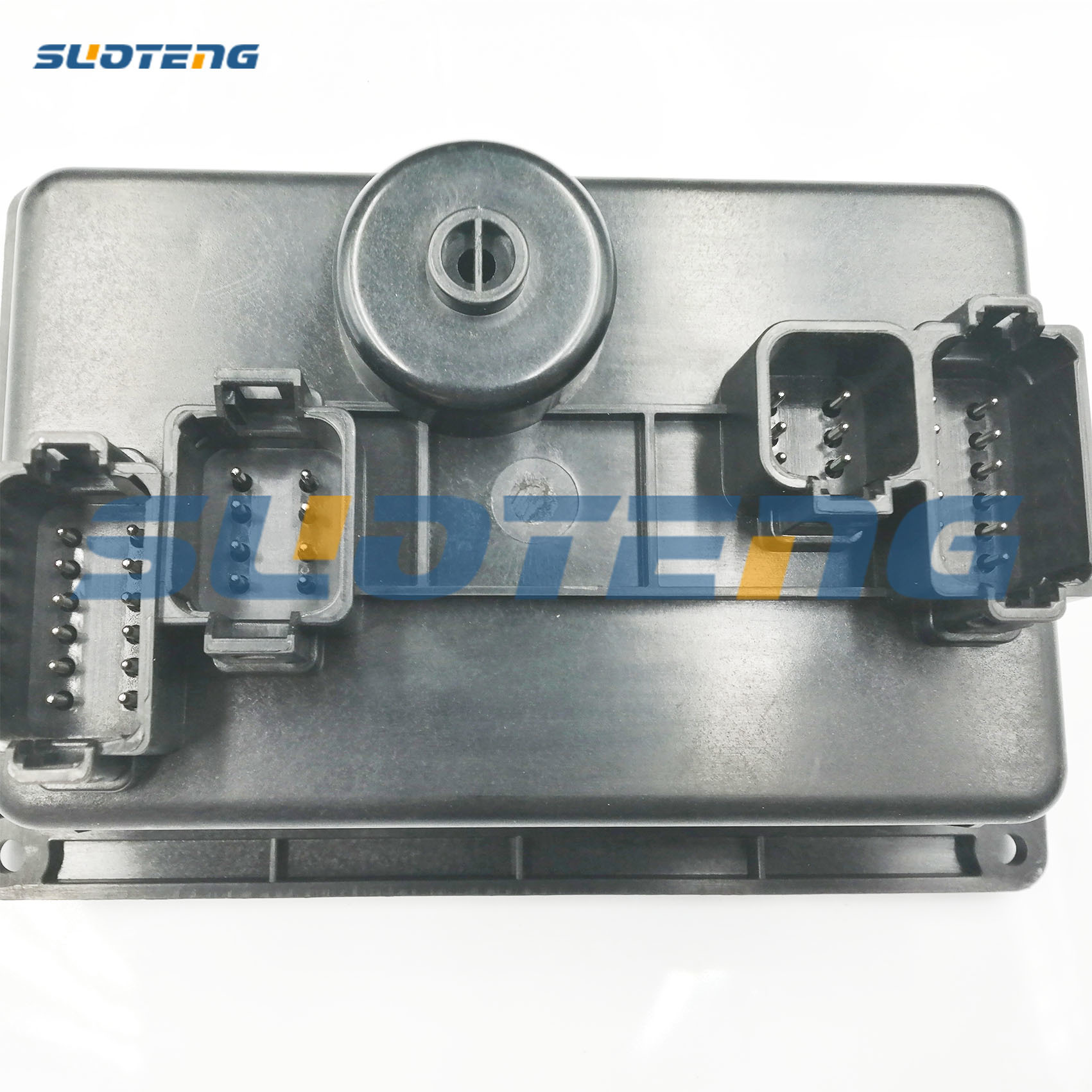

VOE23751380 23751380 Monitor Panel for TAD1643 Generator Set
Product Details
| Part Number: | VOE23751380 | MOQ: | 1 |
|---|---|---|---|
| Highlight |
TAD1643 generator monitor panel,excavator generator display screen,VOE23751380 replacement monitor panel |
||
Product Description
| Product Name | Controller |
|---|---|
| Part Number | VOE23751380 |
| Brand Name | JIAJUE |
| Machine Model | TAD1643 |
| Condition | Brand New |
| Availability | Rich Stock |
| Delivery Time | Usually delivered within 1-3 days after payment |
| Approximate Weight | 2KG |
| Size (per unit) | 20cm x 30cm x 8cm |
| Delivery Methods | DHL, FedEx, TNT, UPS |
| Shipment | Dispatched within 24-48 hours |
| Payment Methods | TT, Western Union, Credit Card, PayPal |
- Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
- Programming & Testing: 30-60 minutes.
- The diagnostic tool cannot communicate with the monitor panel, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
- Active fault codes related to internal memory or voltage reference issues that persist after checking the wiring harness often indicate panel failure.
- Sudden system malfunctions, display errors, or persistent monitoring issues after sensors and harnesses have been ruled out.
- Visible signs of overheating, water ingress, corrosion, or broken pins on the connector headers.
- Prepare: Ensure the generator set is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
- Inspect: Check the monitor panel for physical damage or loose connections.
- Connect Diagnostic Tool: Use a diagnostic tool recommended by the manufacturer. Connect it to the monitor panel according to the tool's instructions.
- Read Codes: Use the diagnostic tool to read any error codes stored in the monitor panel. These codes indicate potential problems with the panel or connected systems.
- Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
- Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the monitor panel responds correctly without delays or errors.
- Reset (if needed): Reset the monitor panel if recommended by the manufacturer, especially after repairs or replacements.
- Document: Keep a record of all tests, codes, and results for future reference.
Product Highlights
VOE23751380 Monitor Panel for TAD1643 Generator Set This high-quality monitor panel ensures optimal performance and reliability for your TAD1643 generator set, providing precise monitoring and control capabilities. Product Specifications Product Name Controller Part Number VOE23751380 Brand Name ...
