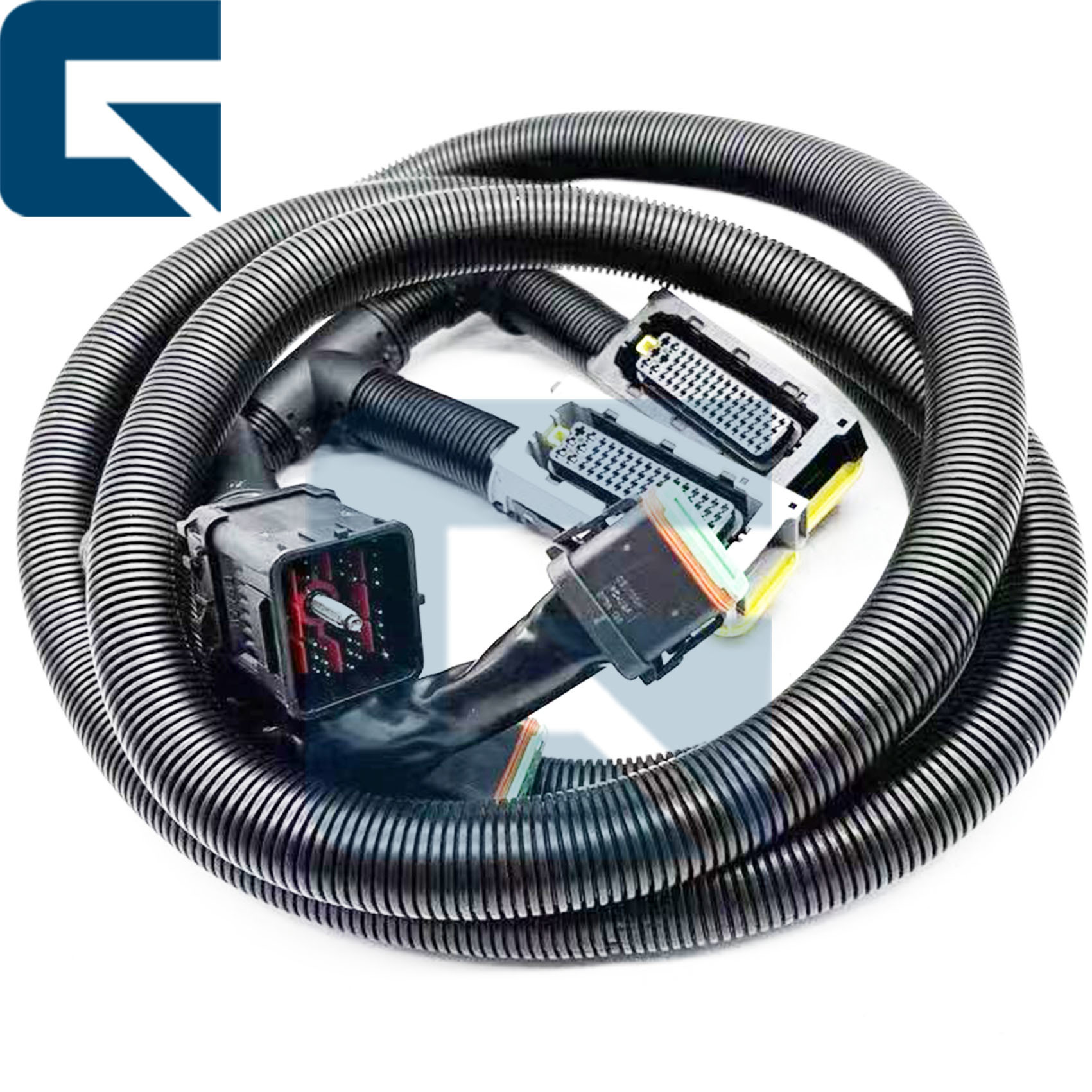

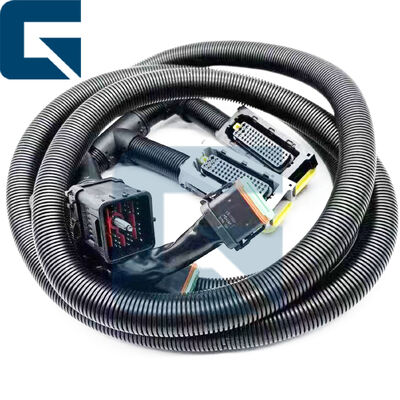

0419-4168 04194168 Transition Harness for BF4M2012 Engine Parts

Basic Information

Place of Origin:	CHINA
Brand Name:	JIAJUE
Model Number:	BF4M2012

Minimum Order Quantity:	1
Price:	Please send mail or WhatsApp
Packaging Details:	0419-4168 04194168 Transition Harness for BF4M2012 Engine Parts is Packed in standard export packing under customer's requirement
Delivery Time:	1 Works day
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	1000PCS/MONTH

Get Best Price Contact Now

Detail Information

Part Number:

0419-4168

Highlight:

BF4M2012 engine transition harness

excavator engine wiring harness

heavy-duty transition harness with warranty

Product Description

Product Overview

0419-4168 Transition Harness for BF4M2012 Engine Parts

Product Specifications

Product Name	Transition Harness
Part Number	0419-4168
Brand Name	JIAJUE
Model	BF4M2012
Availability	Rich Stock
Delivery Time	Usually 1-3 days after payment
Approximate Weight	2KG
Size (per unit)	20cm x 30cm x 15cm
Delivery Methods	DHL, FedEx, TNT, UPS
Shipment	Dispatched within 24-48 hours
Payment Methods	TT, Western Union, Credit Card, PayPal

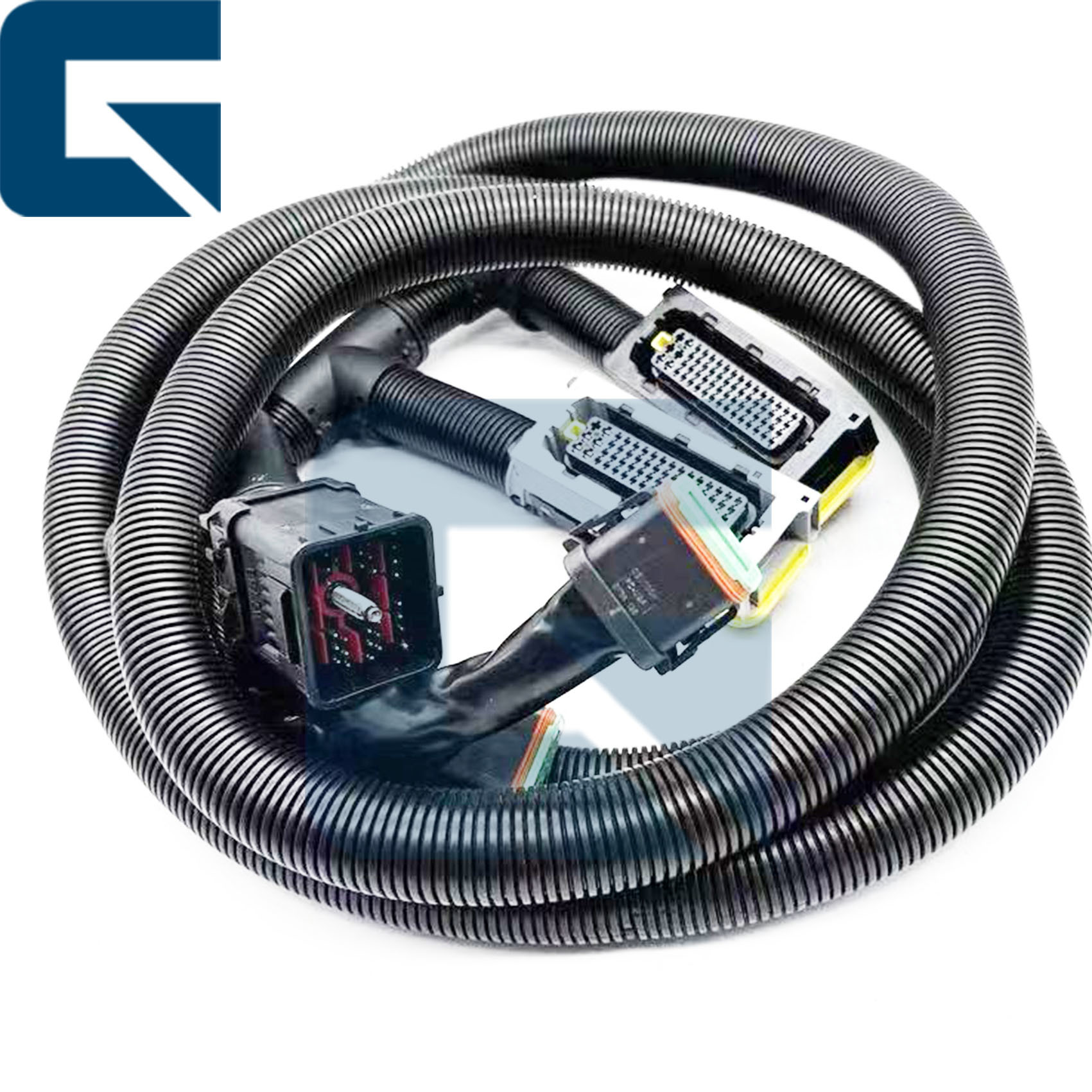

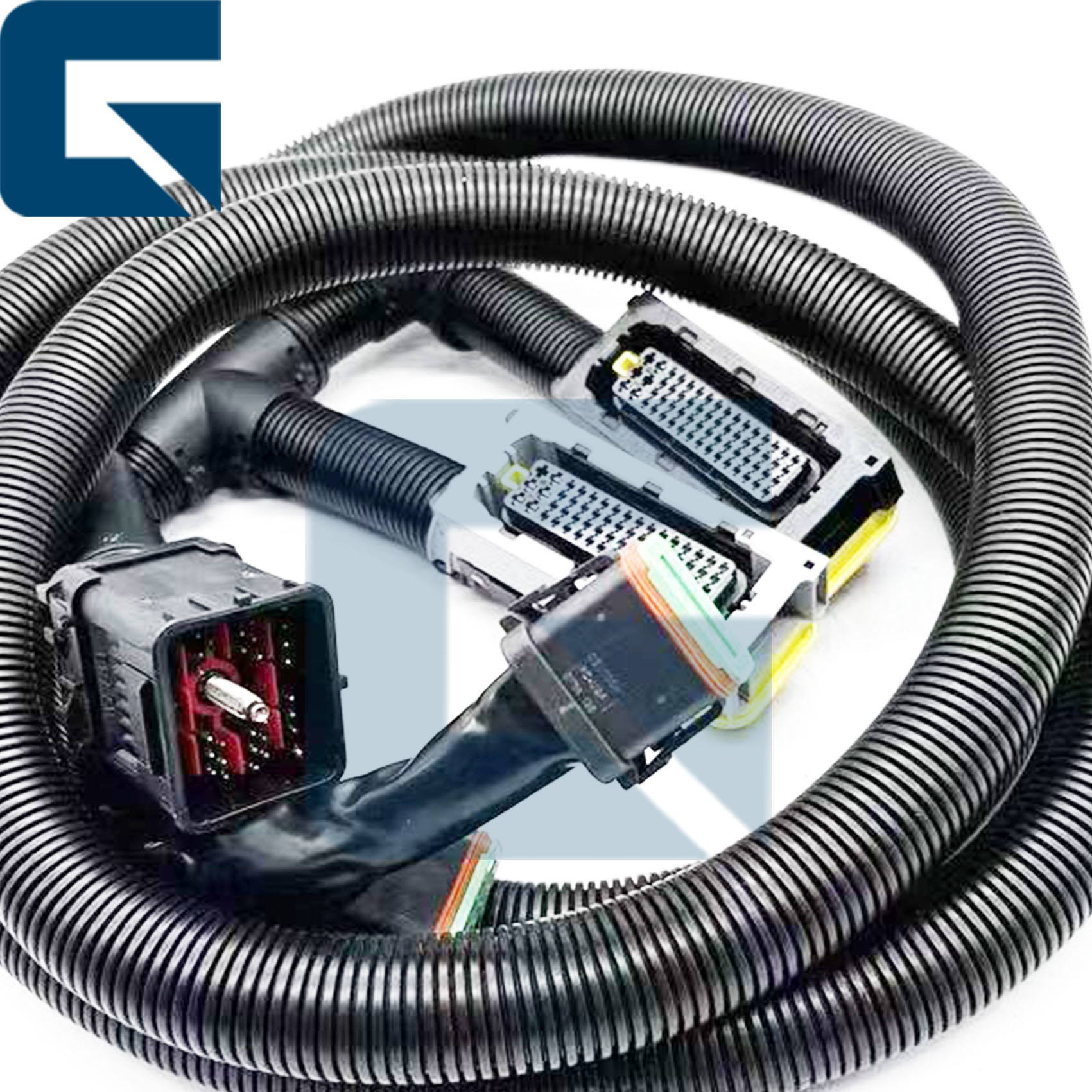

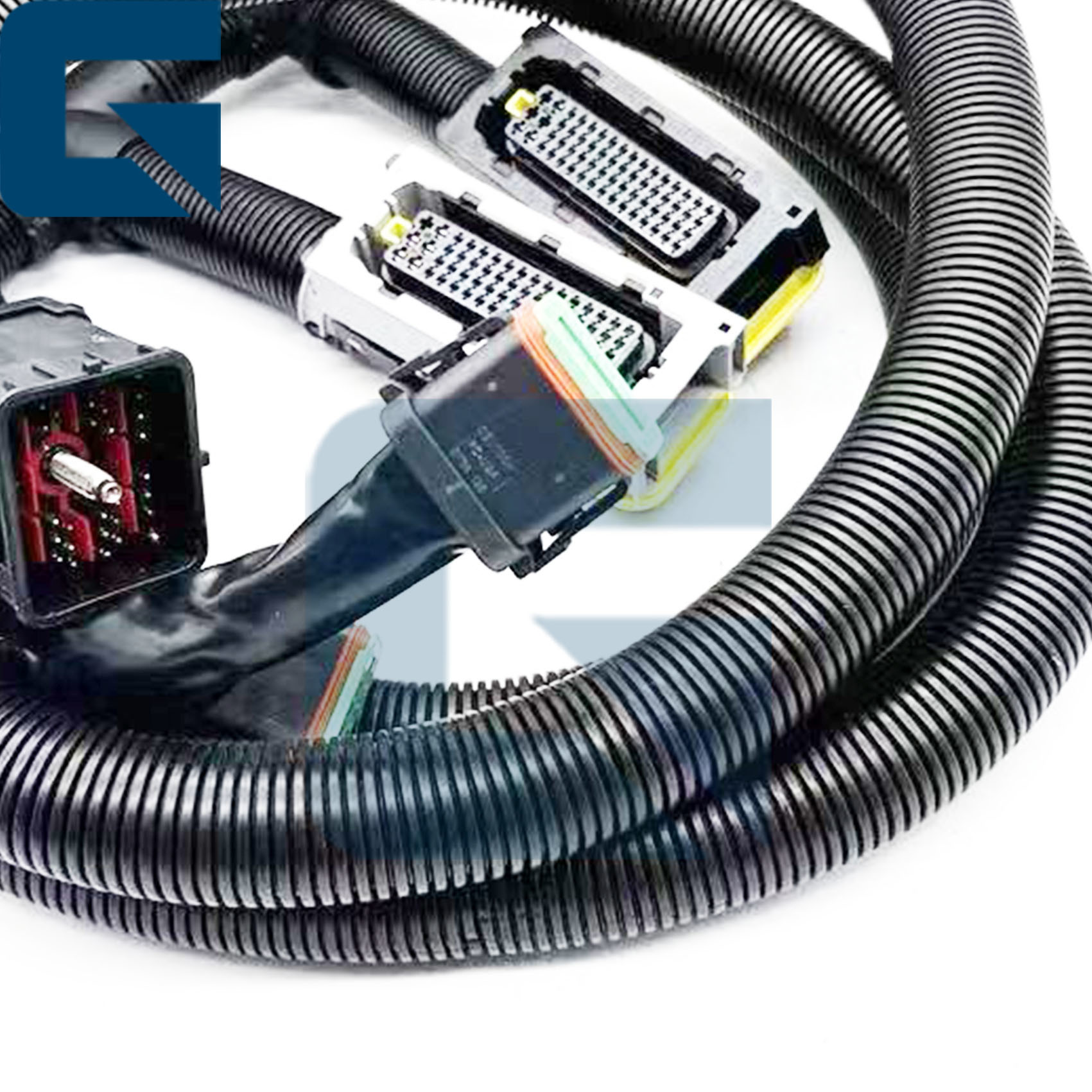

Product Photos & Testing

Frequently Asked Questions

Installation Time

Installing a complete 0419-4168 harness, under normal conditions and without additional faults, requires 4-6 hours by mechanics (2 people working together).

Identifying Damaged Chassis Harness

E320D machine walking abnormality: drive motor solenoid not working, walking speed switching malfunction, fault codes appear or disappear when walking or shaking the wiring harness.

PC200-8 Excavator Compatibility

To ensure compatibility with PC200-8 excavator, check:

Whether the circuit functions are consistent
Whether the number and arrangement of the plugs and pins are consistent
Whether the electrical voltage parameters are matched

Step-by-Step Testing Guide

Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Connect each plug of the wire harness to the corresponding hole on the test bench
Each time a switch is turned on, a function is tested. The corresponding indicator light turns on, indicating that the function is normal

Quick Checklist for Buyers

Preparation	Requirement
Battery	Must be disconnected
Old Harness	Compare with the new one first
Pins/Plugs	Clean and straight
Routing	Smooth path, no sharp edges
Fastening	Secure but not over-tightened

Packaging & Shipping
