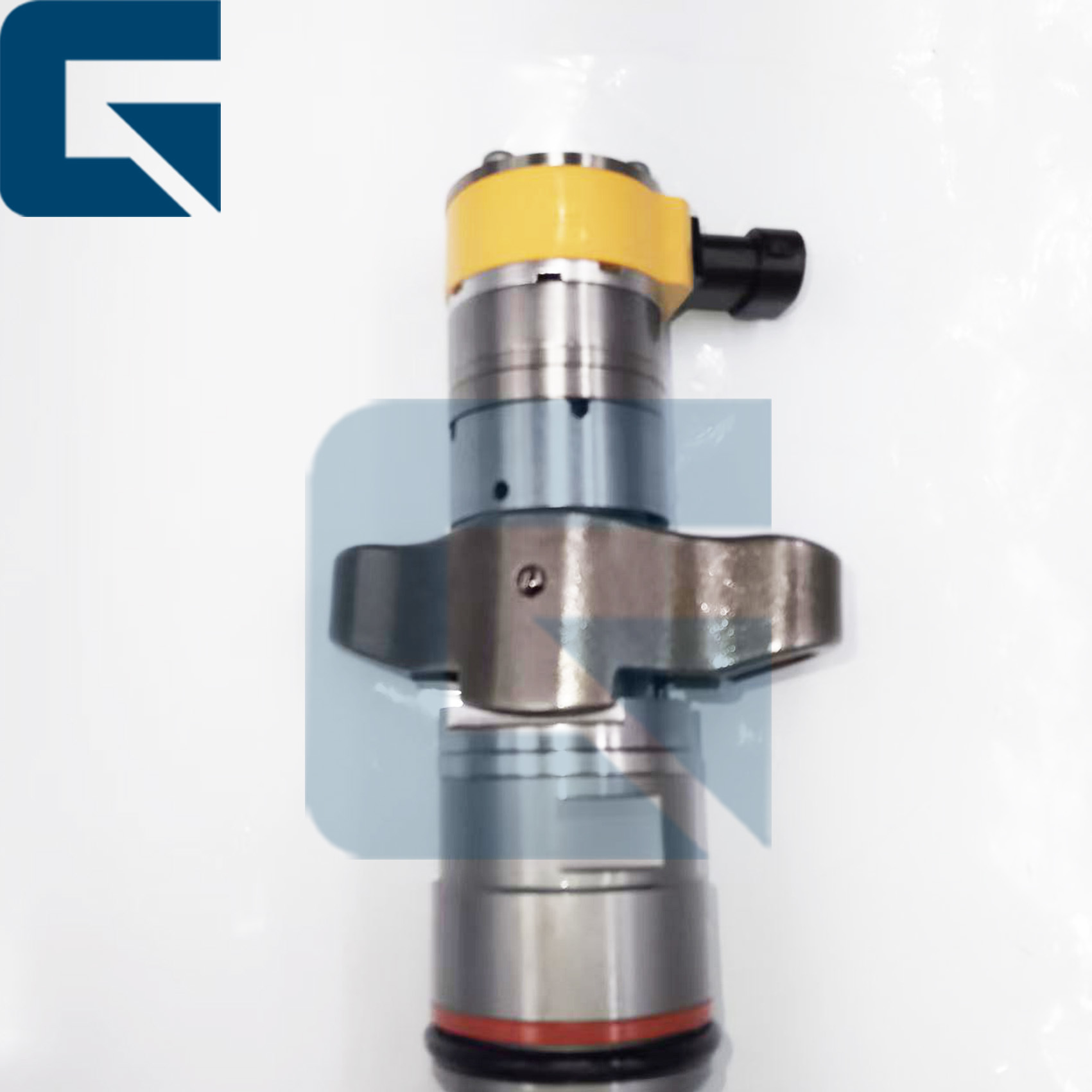

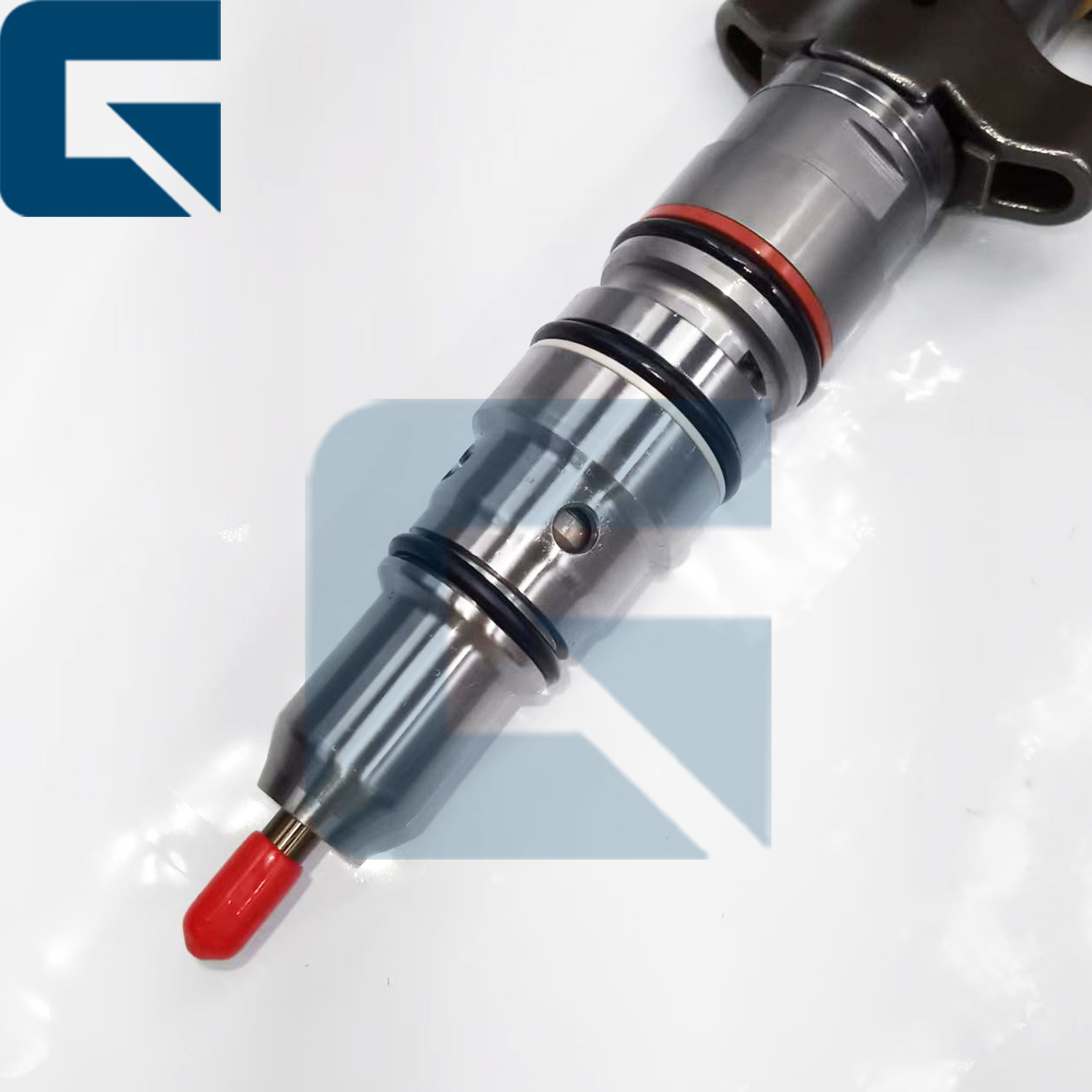

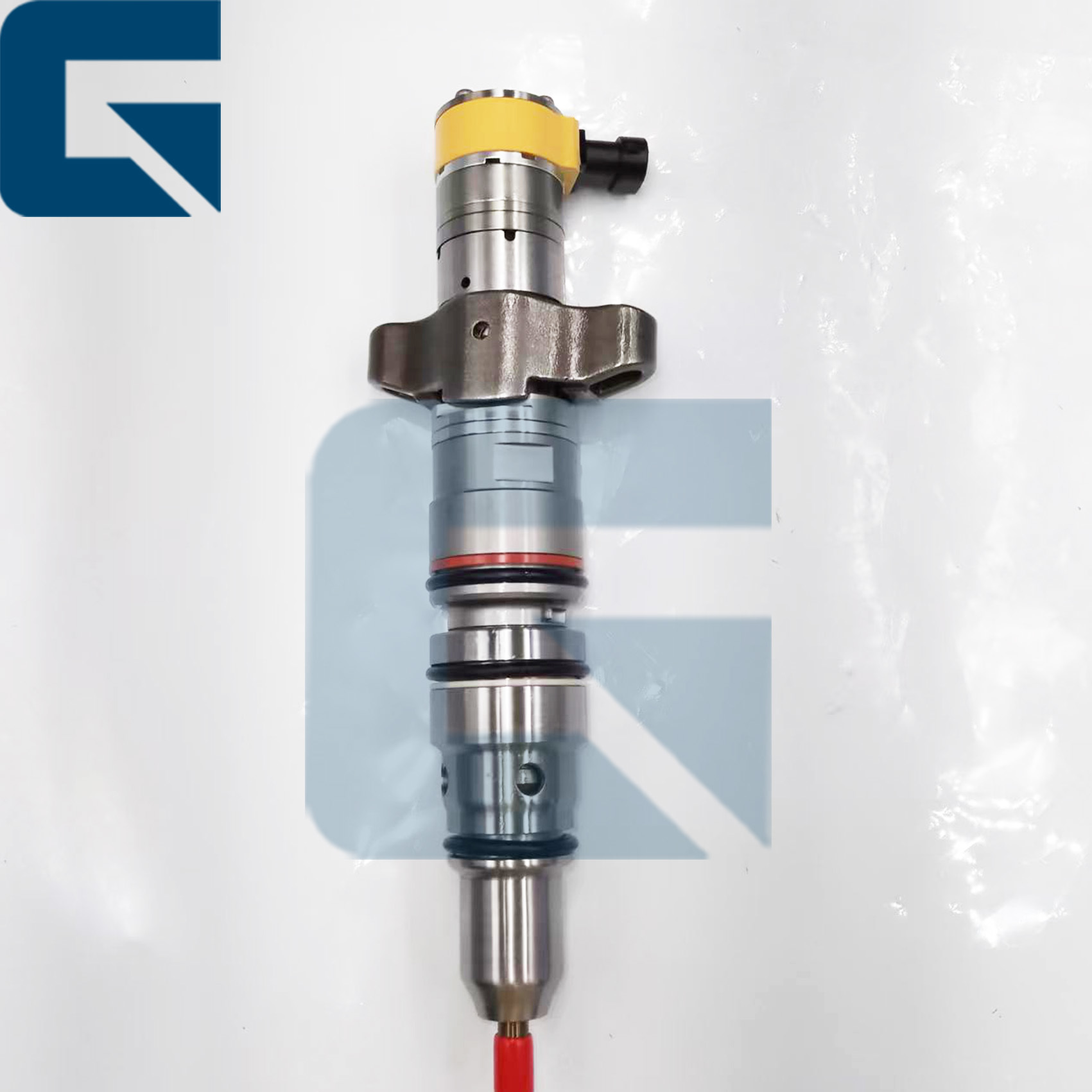

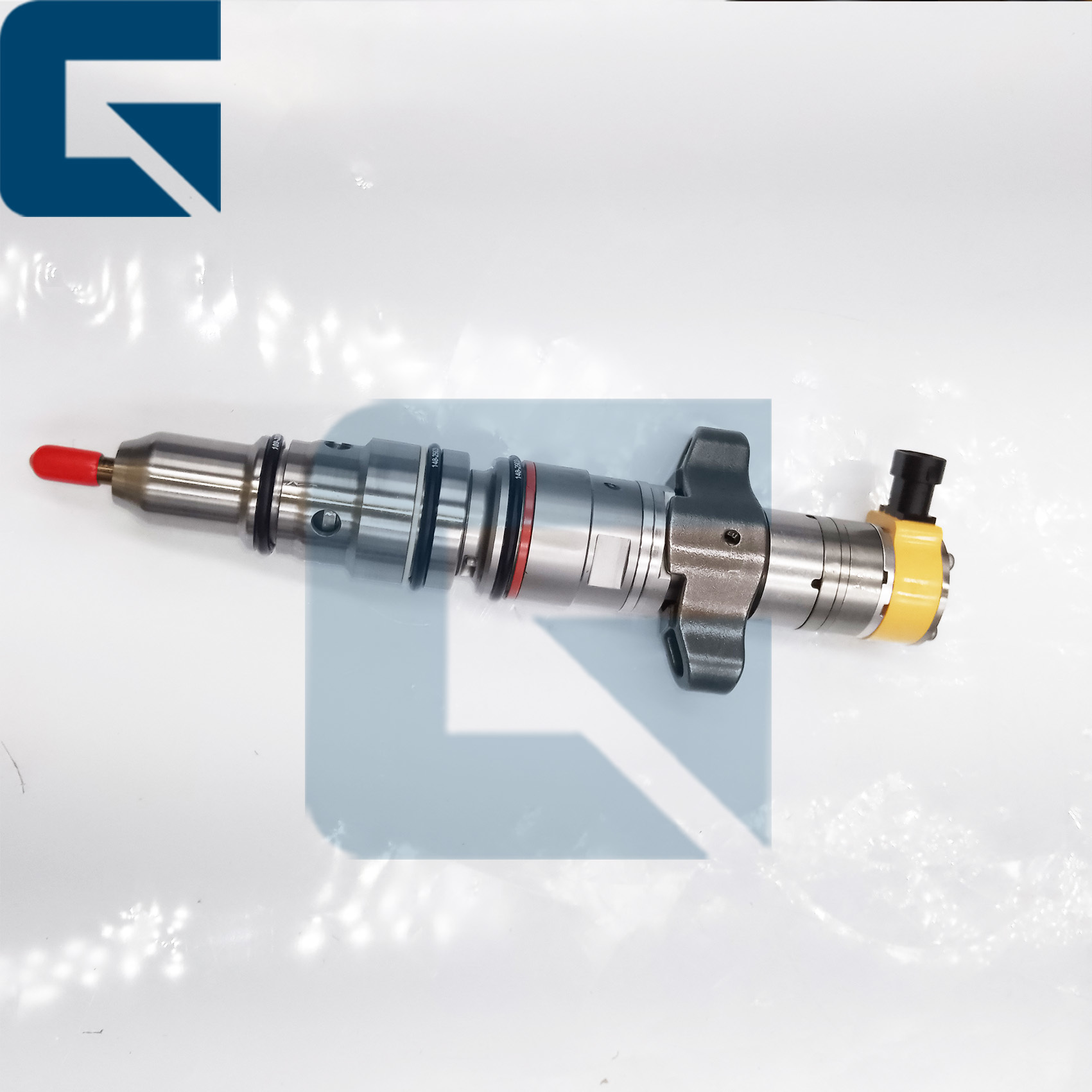

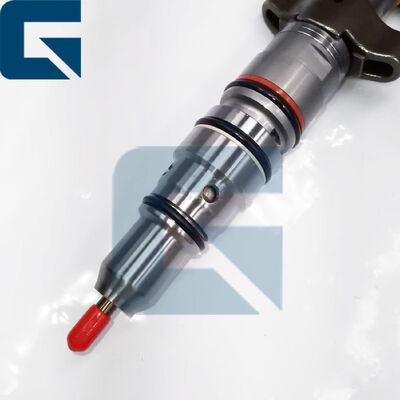

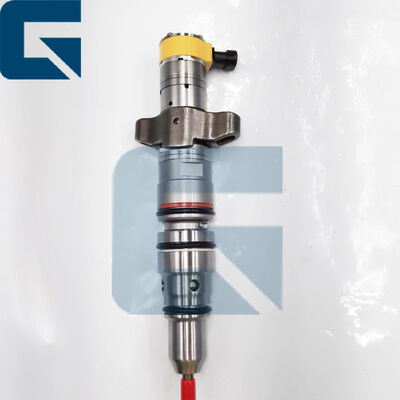

Quality 328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9 factory

328-2574 Fuel Injector 3282574 Diesel Injector for Engine C9

Brand Name: JIAJUE

Model Number: C9

Place of Origin: CHINA

Minimum Order Quantity: 1

Price: Please send mail or WhatsApp

Supply Ability: 1000PCS/MONTH

328-2574 diesel fuel injector for C9 engine

C9 engine diesel injector 3282574

3282574 fuel injector replacement part

Product Description

328-2574 Fuel Injector for C9 Engine

Product Specifications

Product Name	Fuel Injector
Part Number	328-2574
Brand Name	JIAJUE
Engine Model	C9
Availability	Rich Stock
Approximate Weight	3KG
Dimensions (per unit)	20cm x 5cm x 8cm
Delivery Methods	DHL, FedEx, TNT, UPS
Warranty	3 months
Shipment	Dispatched within 24-48 hours

Product Photos & Testing

328-2574 fuel injector detailed view showing construction and components

Fuel injector testing and quality control process

Close-up view of injector nozzle and internal components

Fuel injector packaging and labeling details

Related Products

Related diesel engine components and parts for D12 engine

Frequently Asked Questions

Q1: How do I install my fuel injector after purchasing it?

Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions.

Q2: What precautions should I take before installing 328-2574 fuel injector?

The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; ensure the O-ring is installed correctly.

Q3: Why is my engine still unusable after replacing the fuel injector?

This is commonly due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.

Q4: Is my device compatible with this part number of fuel injectors?

If you're unsure about compatibility, please send us your Engine Serial Number (ESN) for free verification.

Q5: How to determine if your fuel injectors need replacing?

Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations to locate faulty cylinders.
Fuel Rail Pressure Test: Check for internal leaks preventing system from building critical starting pressure.
Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly.
Visual Inspection: Inspect fuel injector nozzles for carbon buildup, blockage, or corrosion.

Q6: How long will it take to receive my package after payment?

Delivery time depends on your country/region and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.

Step-by-Step Installation Guide

HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

1. Preparation

Clean the injector bores thoroughly. Ensure no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for pitting or erosion.

2. Lubrication

Apply clean engine oil to the three O-rings and backup rings.

Never use grease. Only use clean engine oil to ensure seals slide in without tearing.

3. Seating the Injector

Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.

4. Torque Specifications

Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft).

Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.

5. Trim Code Programming

Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM for precise fuel delivery synchronization.

Troubleshooting Guide

Issue	Root Cause	Solution
Black Smoke	Poor spray atomization or stuck needle valve causing dripping	Inspect the air filter
Hard Start	Internal leakage in injector leading to insufficient starting oil pressure	Inspect injector O-rings and internal seals
Engine Misfire	Faulty solenoid valve coil or worn internal valve components	Inspect wiring harness connections and replace damaged injectors
